Product Specification:

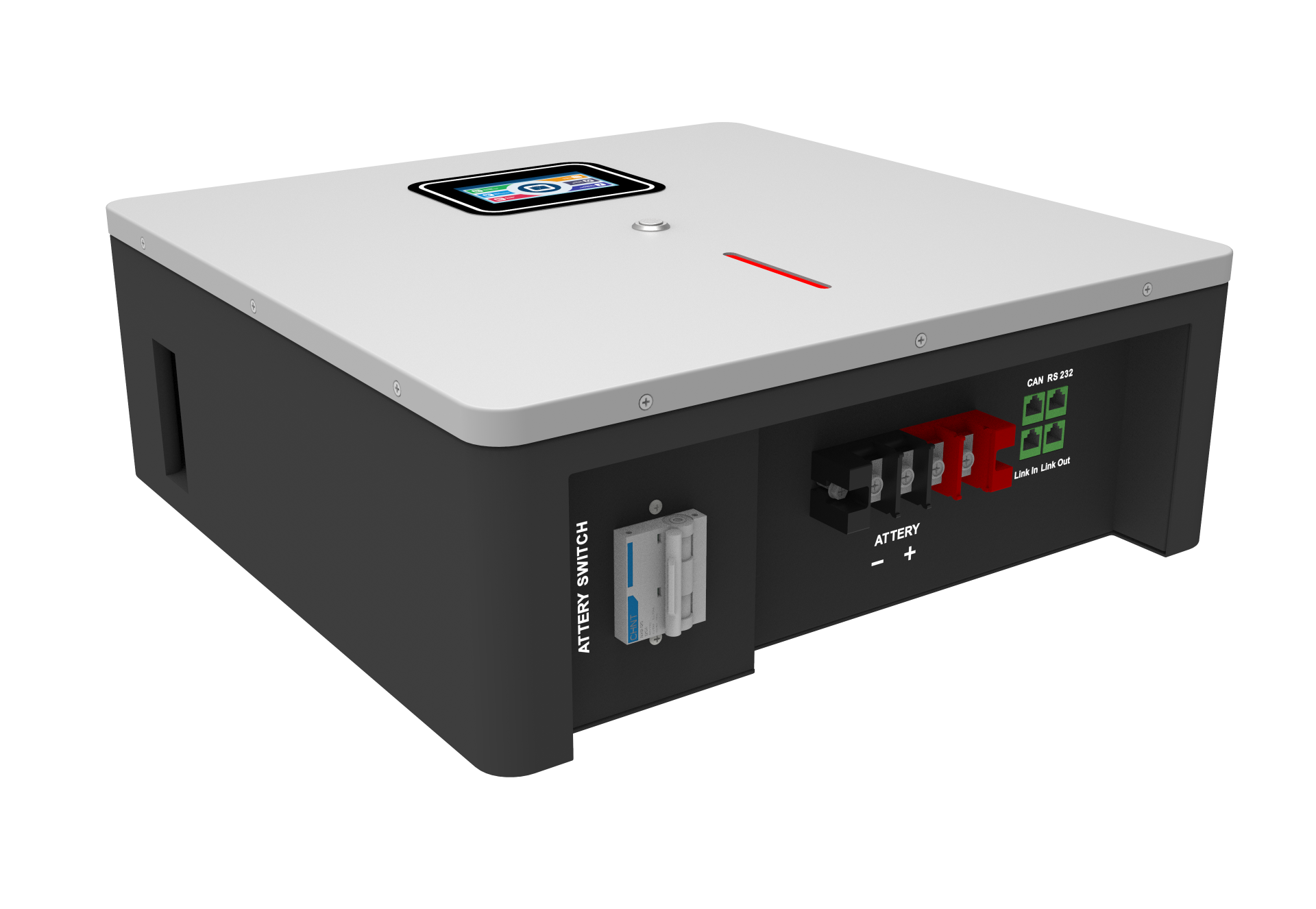

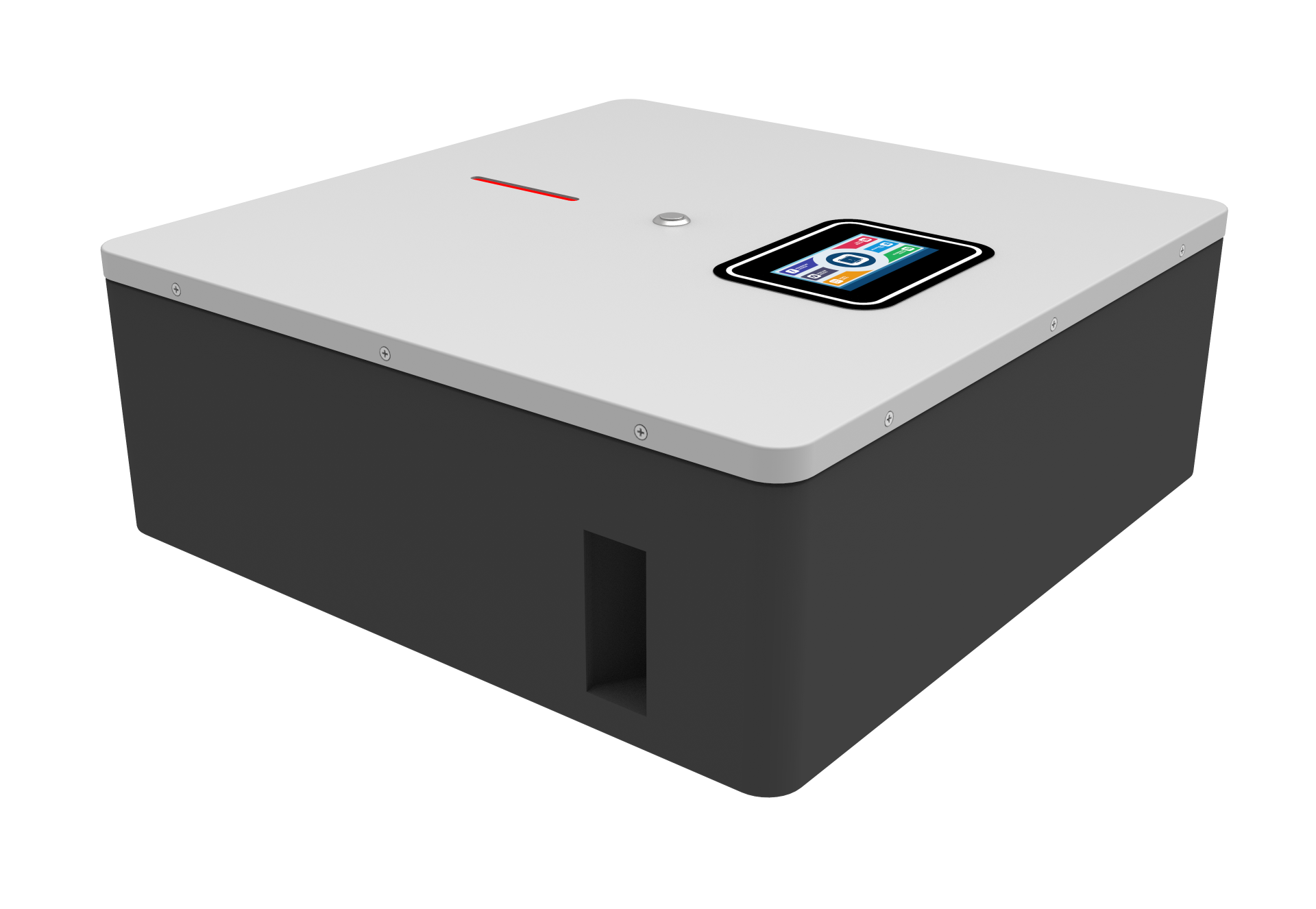

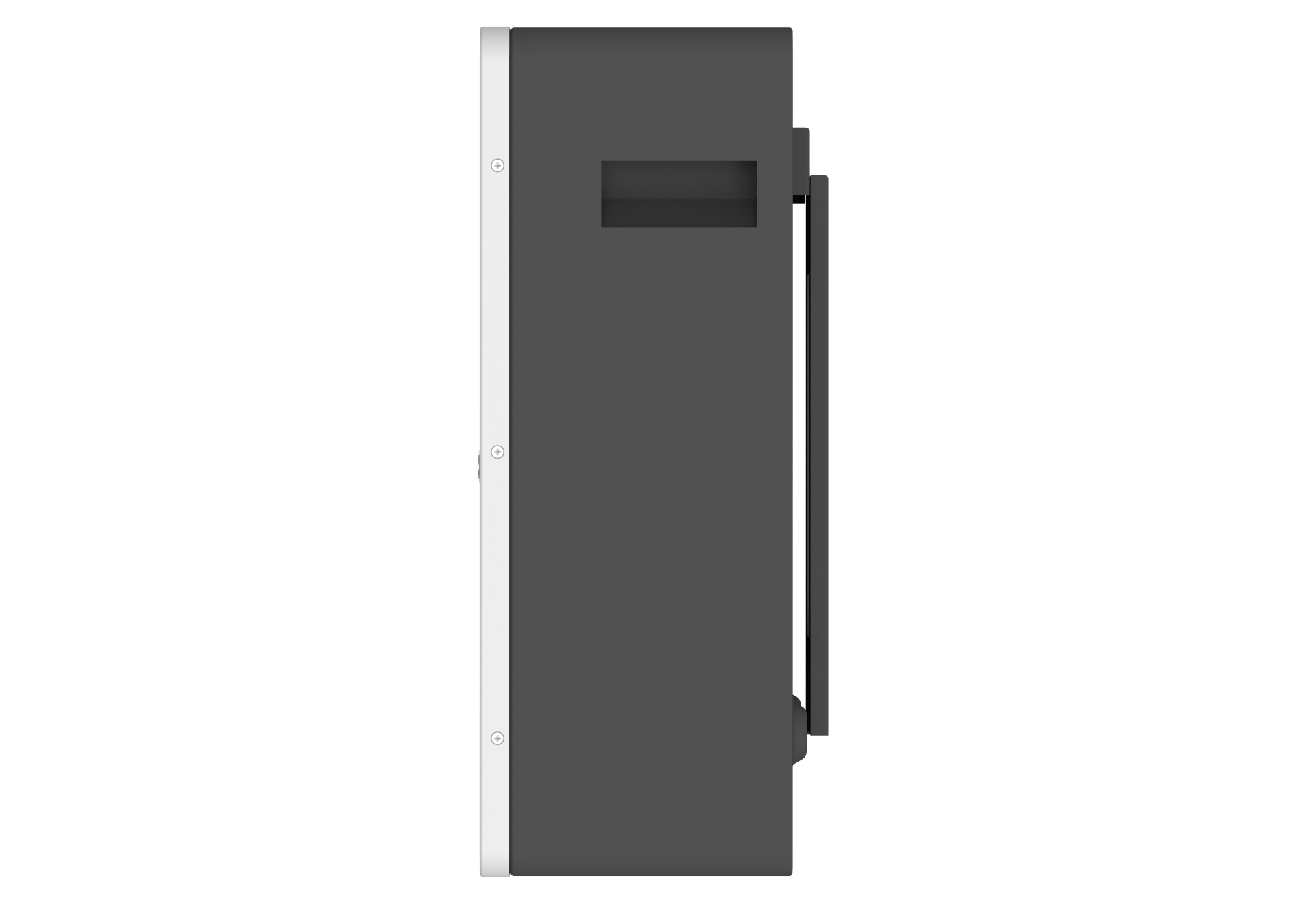

Solar Storage Battery(YWJ-NP-100Ah/200Ah) Parameter
| BATTERY MODEL | YWJ-NP-100AH/25.6V | YWJ-NP-200AH/25.6V | YWJ-NP-100AH/48V | YWJ-NP-200AH/48V |
| Normal charging voltage | 29.2V | 29.2V | 54.75V | 54.75V |
| Maximum charging current | 100A | 100A | 100A | 100A |
| Discharge termination voltage | 21.6V | 21.6V | 40.5V | 40.5V |
| Recommended discharge termination voltage |
22.4V | 22.4V | 42V | 42V |
| Maximum discharge current | 100A | 100A | 100A | 100A |
| Single cell charging overvoltage protection |
3.8V | 3.8V | 3.8V | 3.8V |
| Overvoltage protection for the whole battery |
29.2V | 29.2V | 54.75V | 54.75V |
| Low voltage protection for single cell discharge |
2.7V | 2.7V | 2.7V | 2.7V |
| Low voltage protection for whole group discharge |
21.6V | 21.6V | 40.5V | 40.5V |
| Chargeovercurrent protection | 102~112A | 102~112A | 102~112A | 102~112A |
| Discharge overcurrent protection | 102~122A | 102~122A | 102~122A | 102~122A |
| BMS Features | ●High accuracy cell level voltage,current measuring ●Over-charge,over-discharge protection ●Short-circuit protection ●Self-learning intelligent SOC calculation ●Cell level active equalization ●Multiple communication type ●Parallel connect function |
|||
| Working temperature | -15℃~+55℃ | |||
| Storage temperature | -20℃~+50℃ | |||
| Single Battery Module Dimensions(mm) | 541*480*190 | 541*480*190 | 541*480*190 | 541*480*190 |
| Single Battery Module Weight(KG) | 27KG | 54KG | 54KG | 54KG |
Solar Storage Battery(YWJ-NP-100Ah/200Ah) Advantages
YWJ Solar Battery More Safety to Use

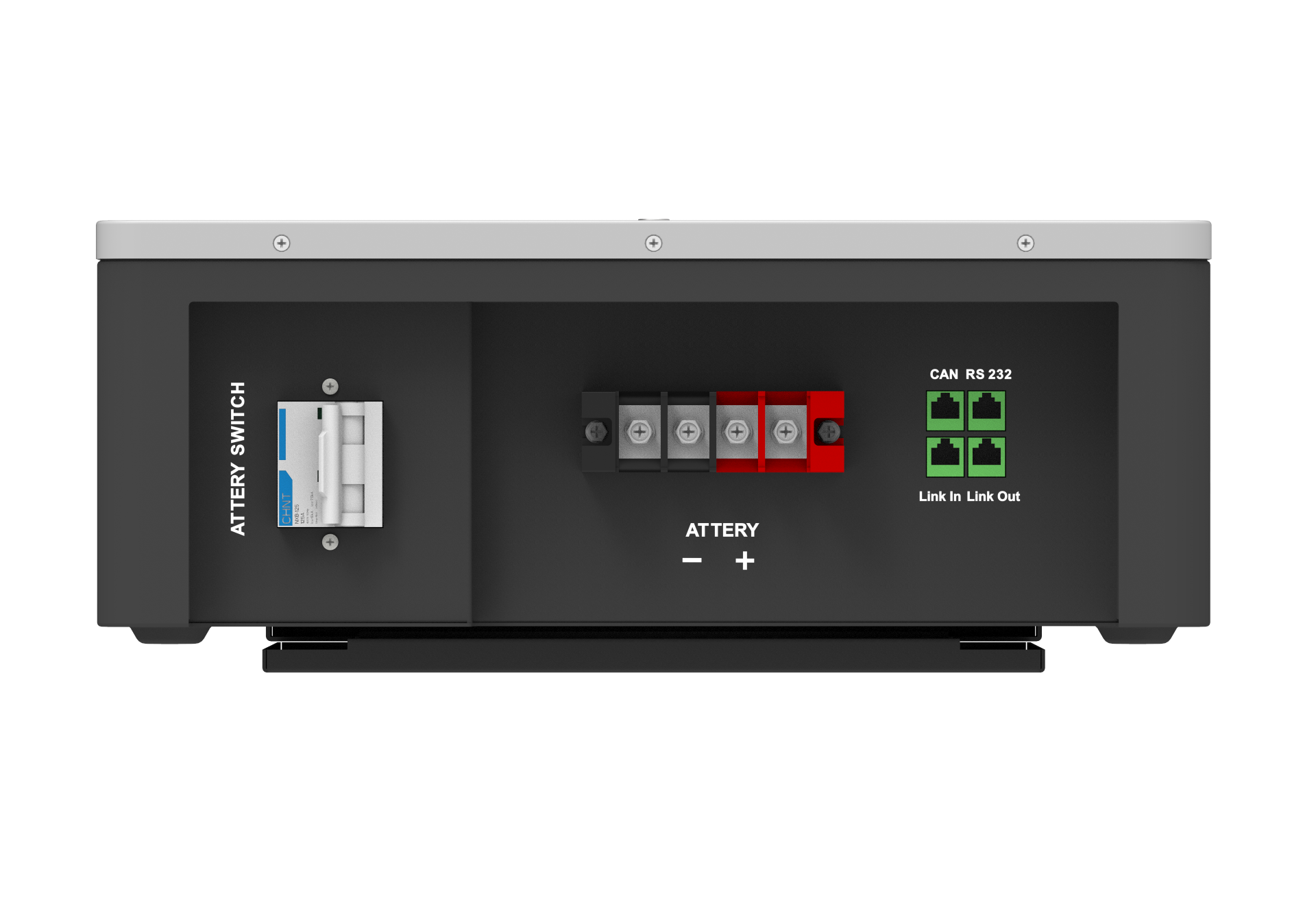

•Built-in BMS(RS232,RS485,CAN)
•Support WiFi
•LCD Display
YWJ Solar Battery of High-tech
•High accuracy cell level voltage,current measuring
•Over-charge,over-discharge protection
•Short-circuit protection

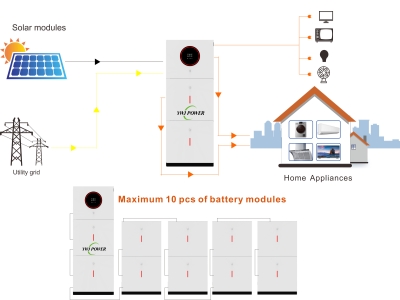

YWJ Solar Battery With Parallel Function
•It supports Maximum 10pcs of Battery Modules
•Multiple communication type

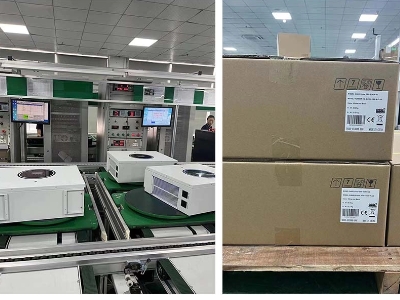

YWJ Solar Battery With 300 Workers and 30000
Square Workingshop

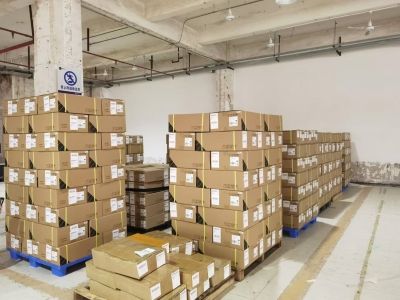

•Fast Delivery And Fully Testing before ALL Shipments
•20 Professional Technicians for After-sale Supporting

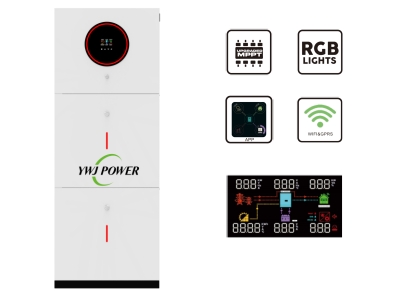

On/Off Grid Hybrid Solar Inverter,YWJ Power Factory
YWJ Power Factory Focuses on R&D and Manufacturing of Solar Inverters More Than 10 Years.
We Commit to Provide Customers with Hi-tech ,Efficient, Stable and Reliable Solar Inverter Solutions.

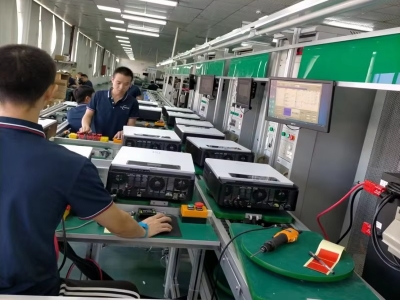

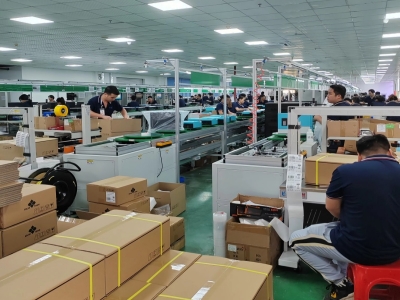

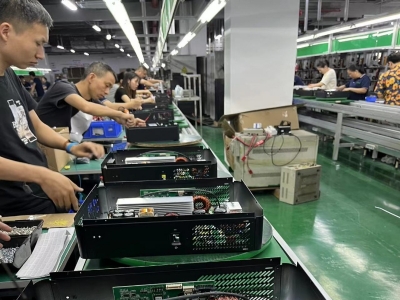

Modern Production Workshop and Advanced Production Equipment and Professional Technical Team
Ensure All Process of the Product From Design to Production Meets the Highest Standards in the Industry.
Supporting the Best Service, Offering the Cost Performance Items,Making the World Greener and Better.
