Off Grid Solar Inverter

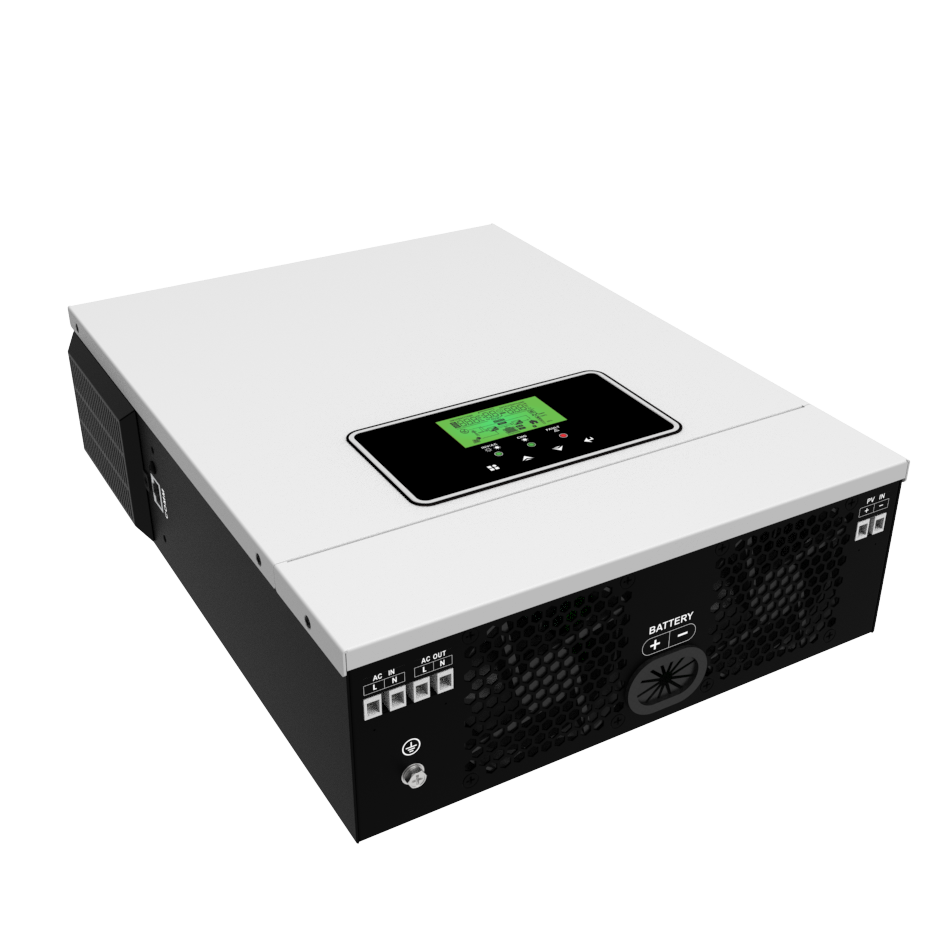

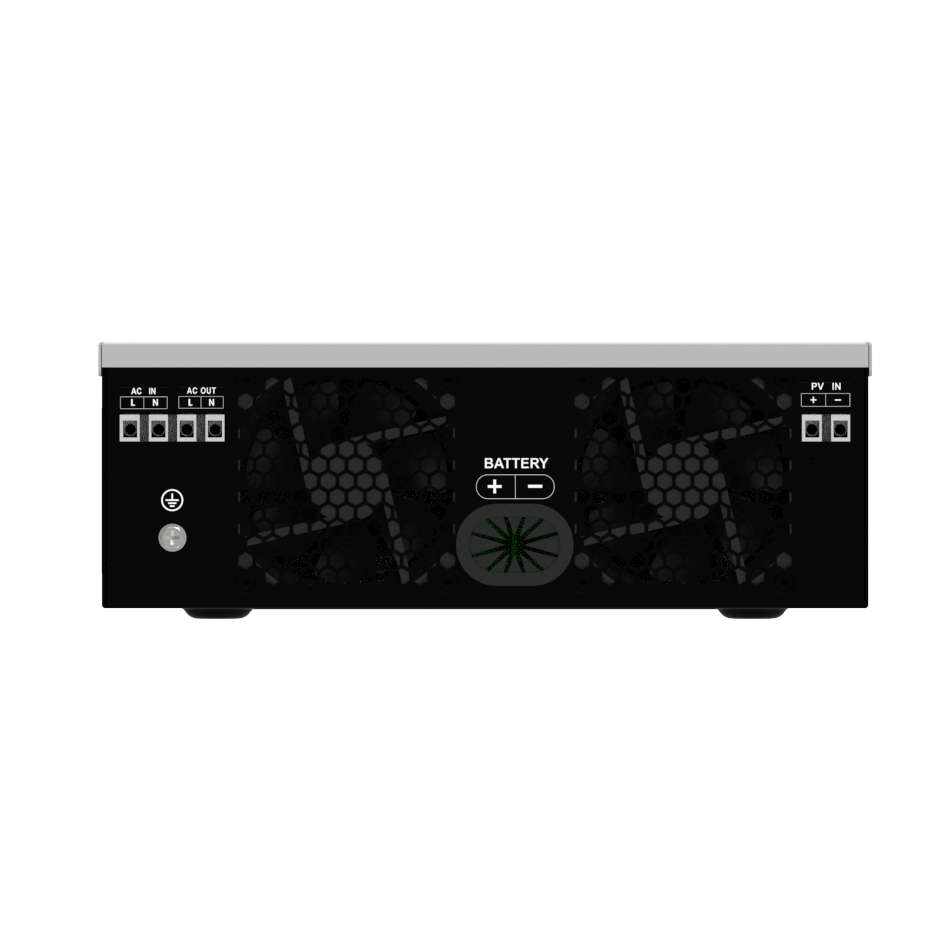

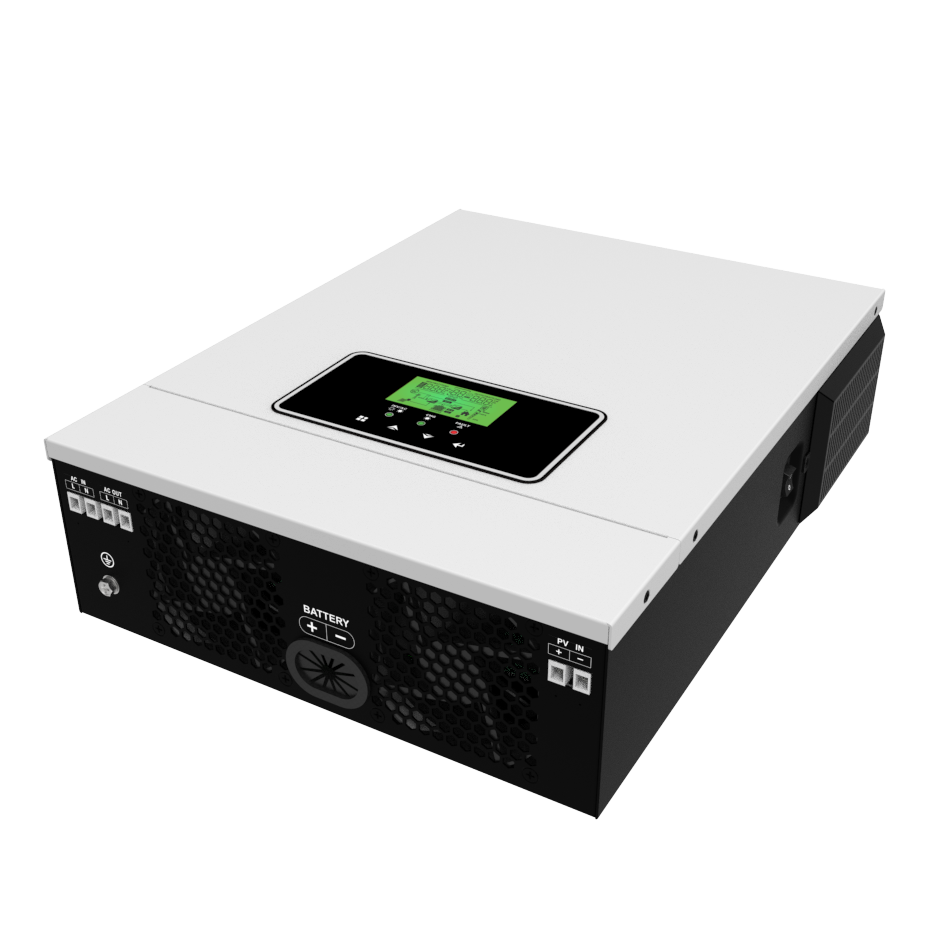

3.2KVA 24V Off Grid Solar Inverter MPPT 400VDC 80A Pure Sine Wave Inverter

Physical Stock Ready to Ship

Product Specification:
  • 1.Pure Sine Wave Solar Inverter
  • 2.Max 80A MPPT Solar Charger
  • 3.Max 400VDC PV Input
  • 4.Output power factor 1.0
  • 5.Support 50Hz or 60Hz
INQUIRY NOW
Product Details





Off Grid Solar Inverter(YWJ-NP-3.2KVA) Parameter





MODEL YWJ-NP-2KVA YWJ-NP-3.2KVA
RATED   POWER 2000VA/1600W 3200VA/3000W
AC Input
Voltage 230VAC
Selectable Voltage Range 170~280VAC(For Personal Computers)
90~280VAC(For Home Appliances)
Frequency Range 50 Hz/60Hz(Auto sensing)
AC OUTPUT
AC Voltage Regulation 230VAC±5%
Surge Power 4000VA 6400VA
Efficiency(Peak)PV to INV 98%
Efficiency(Peak)Battery to INV 94%
Transfer Time 10 ms(For Personal Computers);20 ms(For Home Appliances)
BATTERY &AC CHARGER
Battery Voltage 12VDC 24VDC
Floating Charge Voltage 13.5VDC 27VDC
Overcharge Protection 16VDC 33VDC
Maximum AC Charge Current 60A
SOLAR CHARGER
Maximum PV Array Power  2000W 3000W
MPPTRange @Operating Voltage 30~400VDC
Maximum PV Array Open Circuit Voltage 400VDC
Maximum Charging Current 80A
PHYSICAL
Dimension,D*W*H(mm) 357*273*95
Net Weight(kgs)
Communication interface RS232/GPRS/WIFI
OPERATING ENVIRONMENT
Humidity 5%to 95%Relative Humidity(Non~condensing)
Operating Temperature -10~50℃

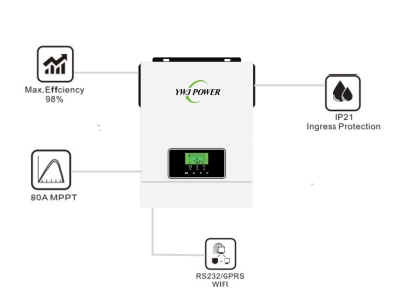

Off Grid Solar Inverter(YWJ-NP-2KVA) Advantages



3KW Solar Inverter



YWJ Solar Inverter with Efficiency Work charger

•MPPT Charger 80A Max
Making Solar Inverter of Higher Work Efficiency and
Output Much Stable.





3000W Solar Inverter



YWJ Solar Inverter of High-tech

•High Range PV Input

30V-400VDC,More Solar Power Available For Using.

Pure Sine Wave Inverter



Solar inverter factory



YWJ Solar Inverter with 12 Month Warranty

• 20 Professional Technicians for After-sales Supporting







Solar inverter manufacturer



YWJ Inverter with 300 Workers and 30000 Square Workingshop

•Fast Delivery and Fully Testing Before All Shipments



Off Grid Solar Inverter,YWJ Power Factory



YWJ Power Factory Focuses on R&D and Manufacturing of Solar Inverters More Than 10 Years.
We Commit to Provide Customers with Hi-tech ,Efficient, Stable and Reliable Solar Inverter Solutions.
Modern Production Workshop and Advanced Production Equipment and Professional Technical Team
Ensure All Process of the Product From Design to Production Meets the Highest Standards in the Industry.
Supporting the Best Service, Offering the Cost Performance Items,Making the World Greener and Better.
