Off Grid Solar Inverter

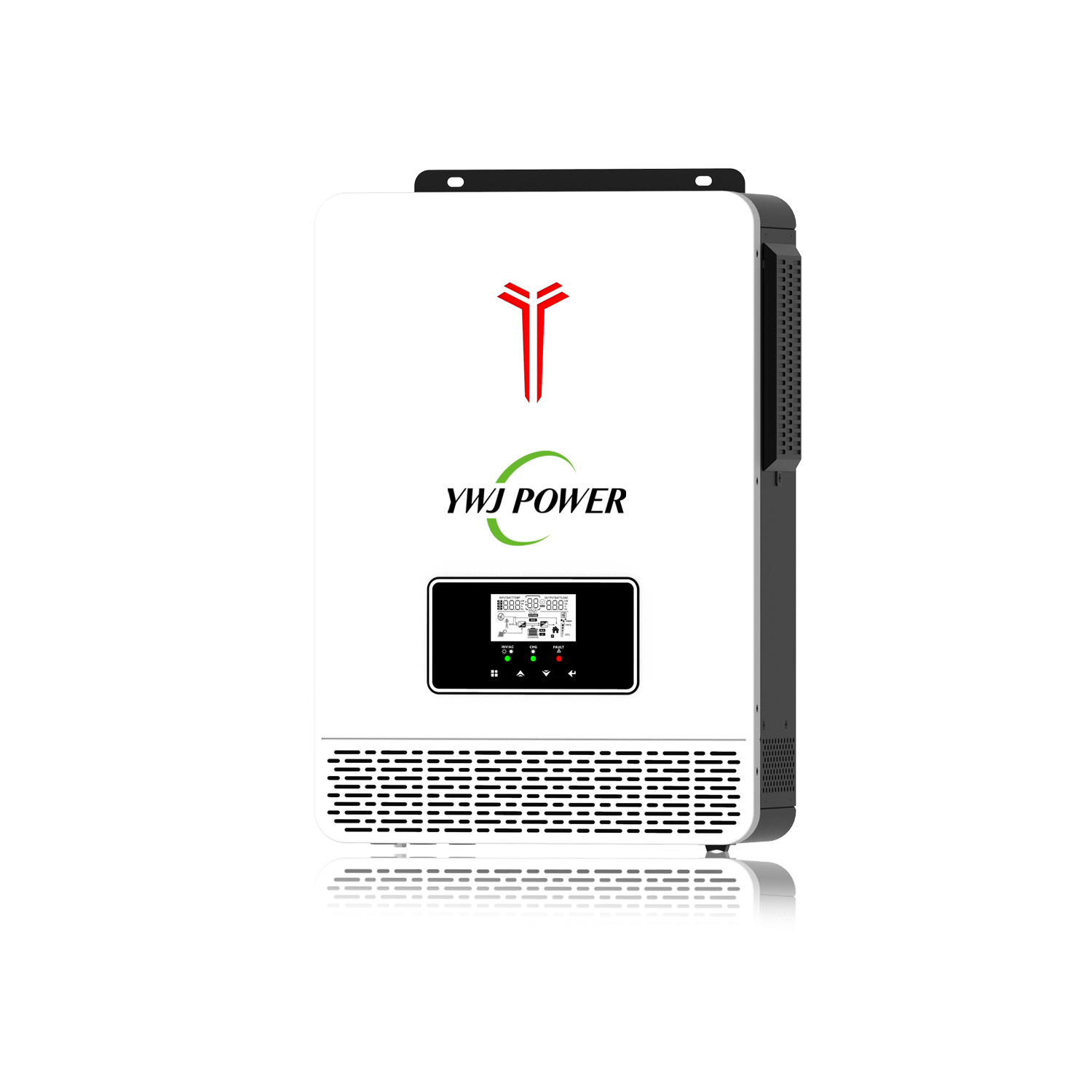

3.2KW 24V 80A Off Grid Solar Inverter MPPT 90-280VDC Pure Sine Wave Inverter with LCD Display for Solar Inverter

Physical Stock Ready to Ship

Product Specification:

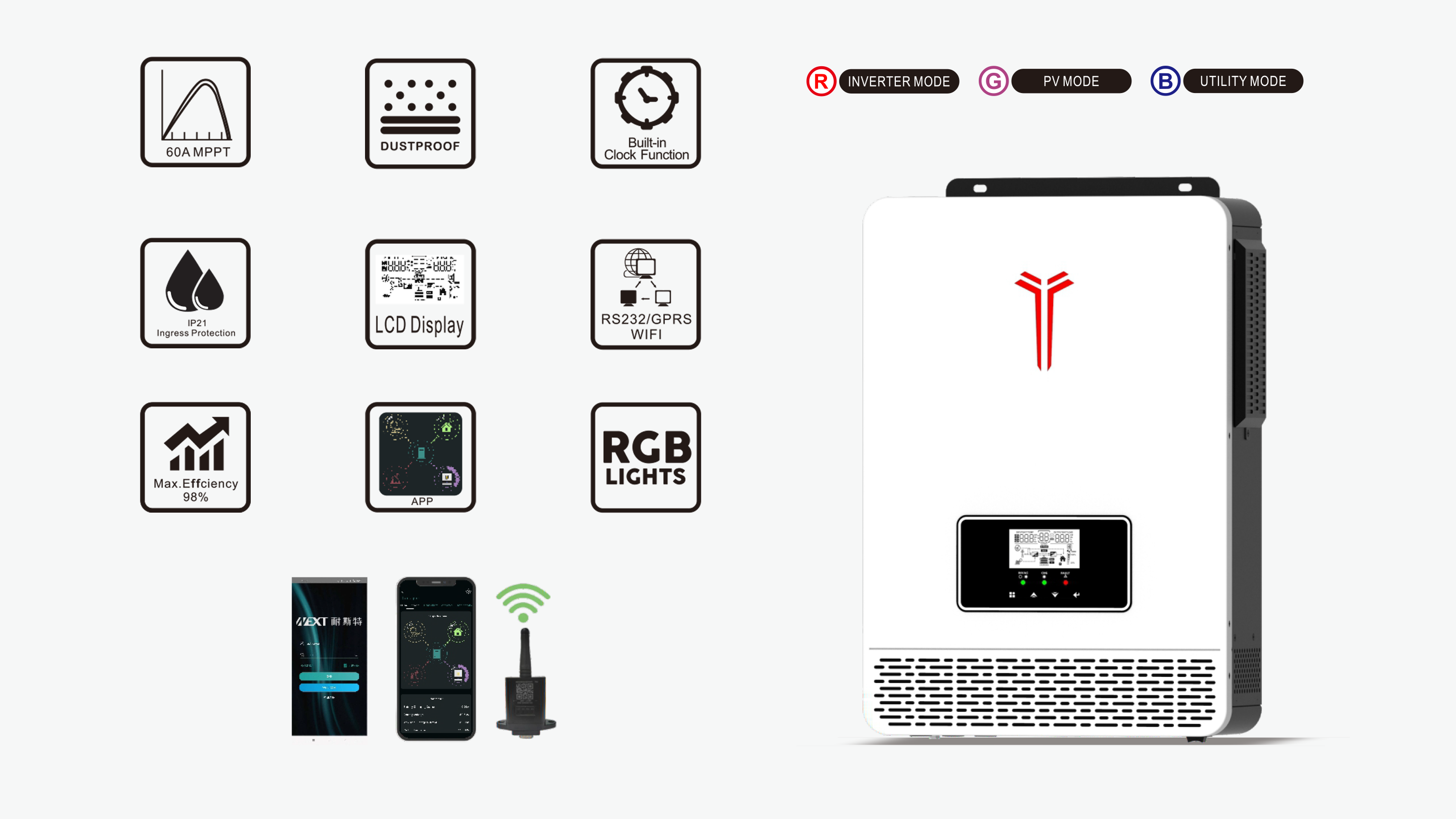

  • 1.Pure Sine Wave Solar Inverter
  • 2.WIFI&GPRS available for lOS and Android
  • 3.Built-in 60A MPPT solar charger
  • 4.PV input voltage range 20-150vDC(for 2000W),30~150VDC(for 3200W)
  • 5.Built-in anti-dust kit for harsh environment

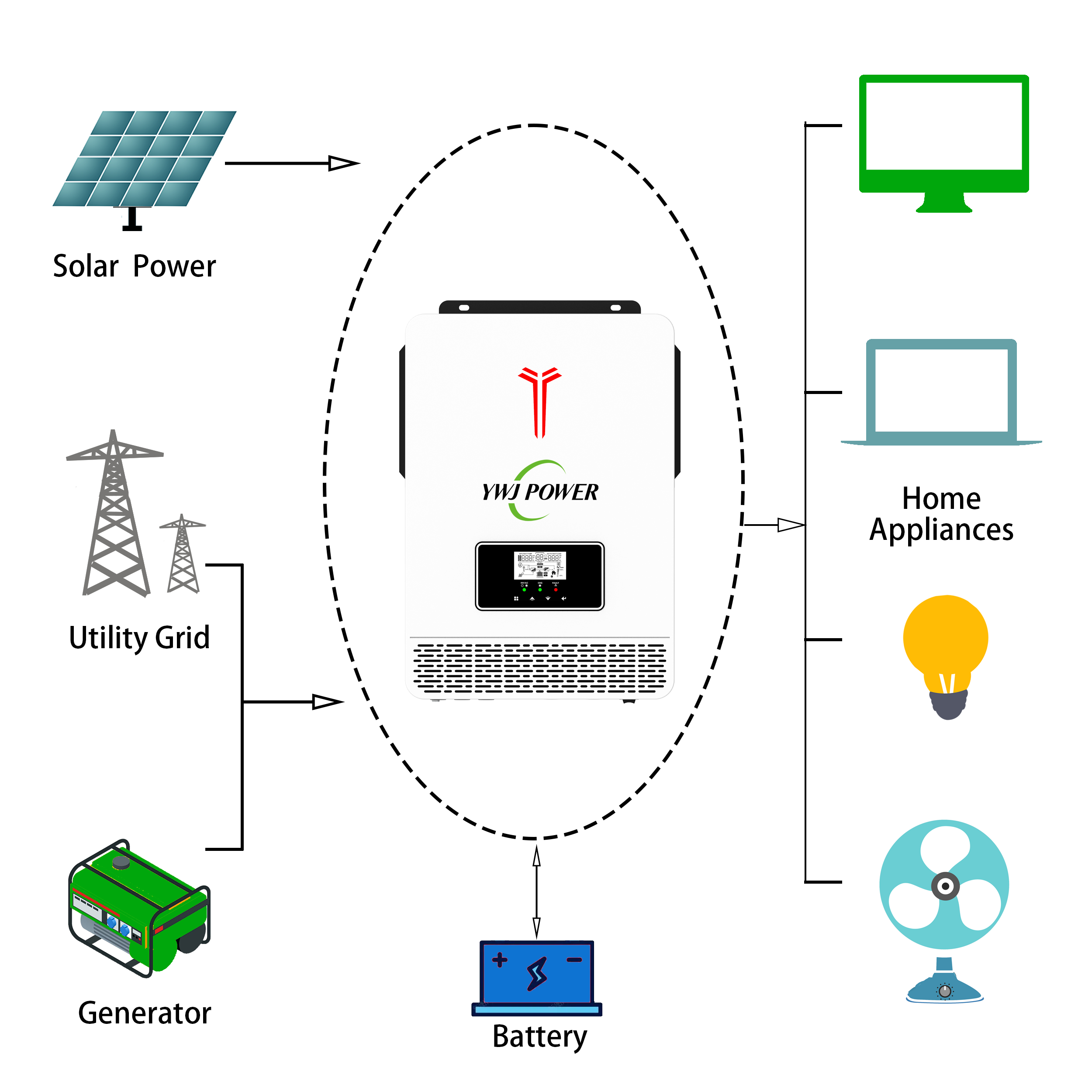

  • 6.Solar energy is provided directly to the load first
  • 7.Built-in Clock Function
INQUIRY NOW
Product Details





Off Grid Solar Inverter(YWJ-NP-3.2KW-24V​) Parameter





MODEL YWJ-NP-2KW-12V YWJ-NP-3.2KW-24V
RATED   POWER 2000VA/2000W 3200VA/3200W
AC Input
Voltage 230VAC
Selectable Voltage Range 170~280VAC(For Personal Computers)
90~280VAC(For Home Appliances)
Frequency Range 50 Hz/60Hz(Auto sensing)
AC OUTPUT
AC Voltage Regulation 230VAC±5%
Surge Power 2000VA 3200VA
Efficiency(Peak)PV to INV 98%
Efficiency(Peak)Battery to INV 92%
Transfer Time 10 ms(For Personal Computers);20 ms(For Home Appliances)
BATTERY &AC CHARGER
Battery Voltage 12VDC 24VDC
Floating Charge Voltage 13.5VDC 27VDC
Overcharge Protection 16VDC 32VDC
Maximum AC Charge Current 60A
SOLAR CHARGER
Maximum PV Array Power 900W 1800W
MPPTRange @Operating Voltage 20~150VDC
Maximum PV Array Open Circuit Voltage 150VDC
Maximum Solar Charging Current 60A
Maximum AC Charging Current 80A
Maximum Solar+AC Charging Current 140A
PHYSICAL
Dimension,D*W*H(mm) 416*291*112
Net Weight(kgs) 6.6 7.0

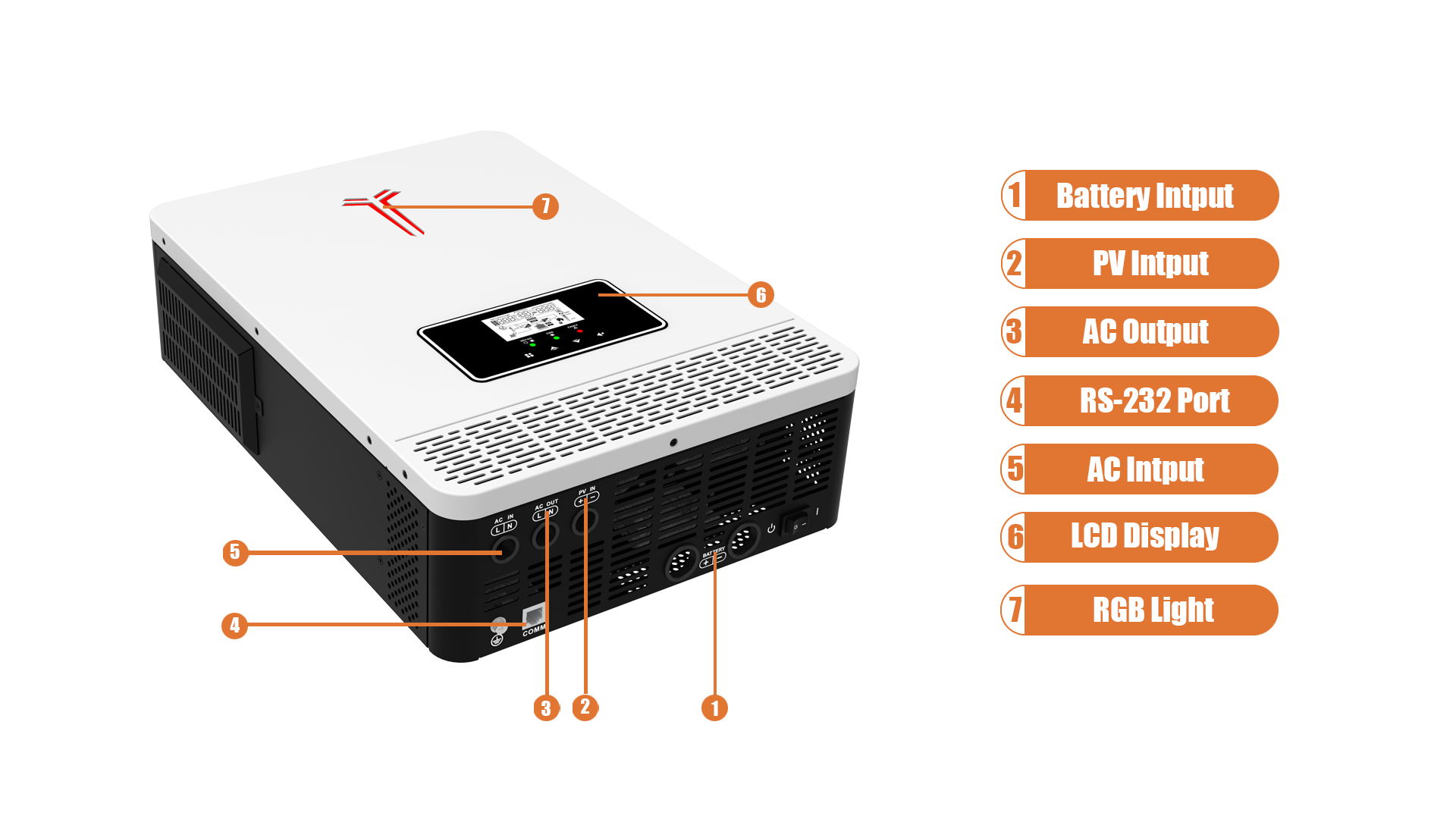

Communication interface RS232/GPRS/WIFI
OPERATING ENVIRONMENT
Humidity 5%to 95%Relative Humidity(Non~condensing)
Operating Temperature -10~50℃





Off Grid Solar Inverter(YWJ-NP-2KVA) Advantages



3.2KW Solar Inverter



YWJ Solar Inverter with Efficiency Work charger

•MPPT Charger 80A Max
Making Solar Inverter of Higher Work Efficiency and
Output Much Stable.

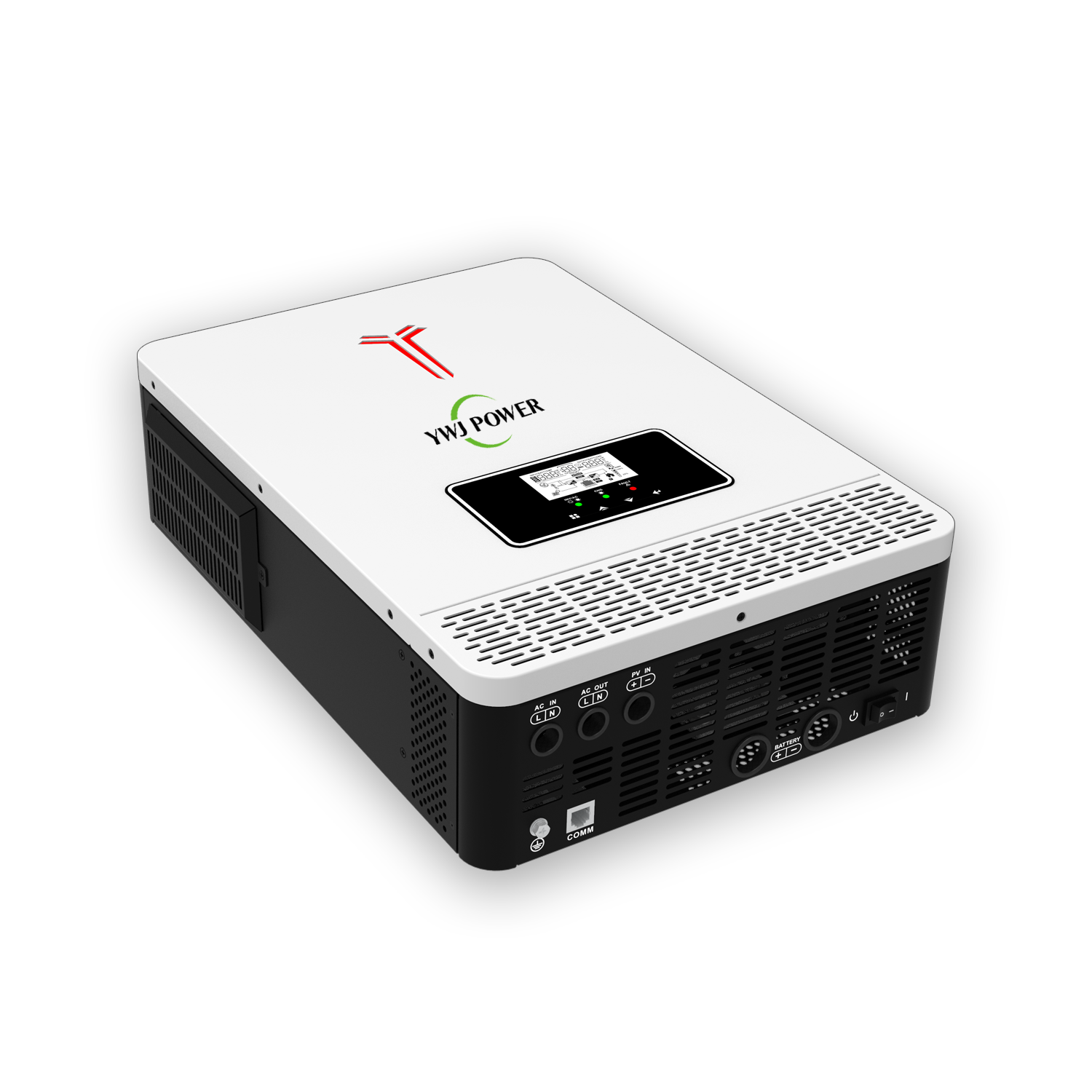

3200W Solar Inverter



YWJ Solar Inverter of High-tech

•3200KW

•High Range PV Input

30V-400VDC,More Solar Power Available For Using.

Pure Sine Wave Inverter



Solar inverter factory



YWJ Solar Inverter with 12 Month Warranty

PGB Mode

• 20 Professional Technicians for After-sales Supporting







Solar inverter manufacturer

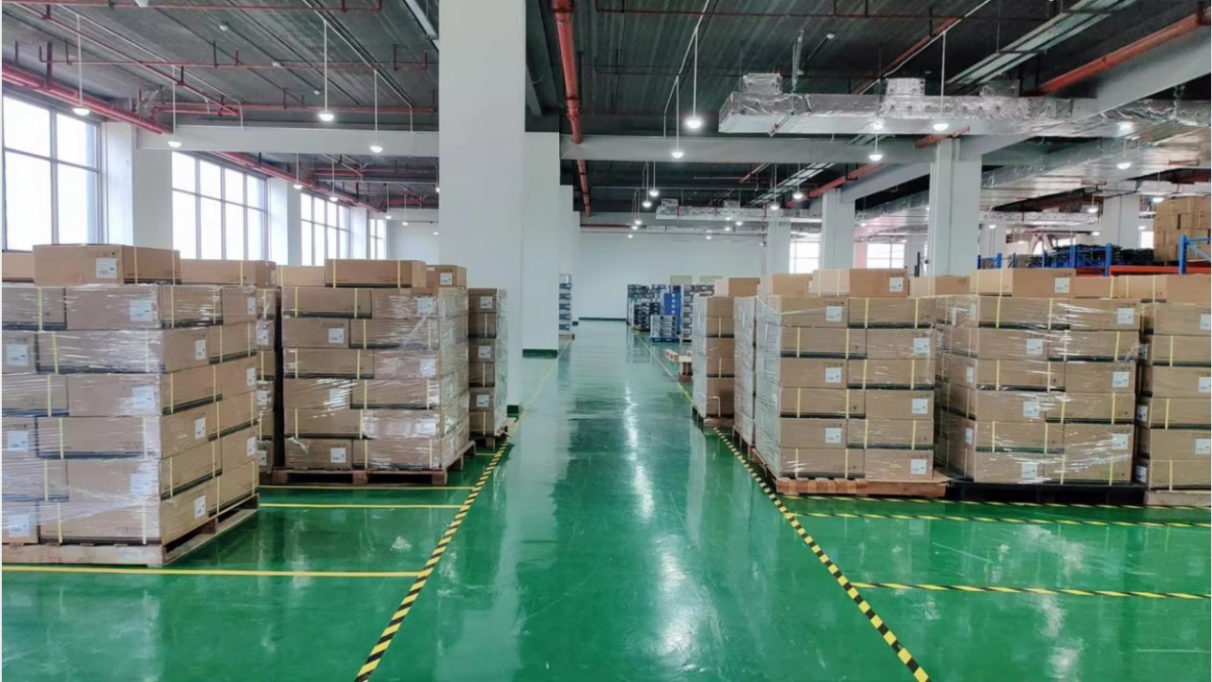

YWJ Inverter with 300 Workers and 30000 Square Workingshop

•Fast Delivery and Fully Testing Before All Shipments



Off Grid Solar Inverter,YWJ Power Factory



YWJ Power Factory Focuses on R&D and Manufacturing of Solar Inverters More Than 10 Years.
We Commit to Provide Customers with Hi-tech ,Efficient, Stable and Reliable Solar Inverter Solutions.

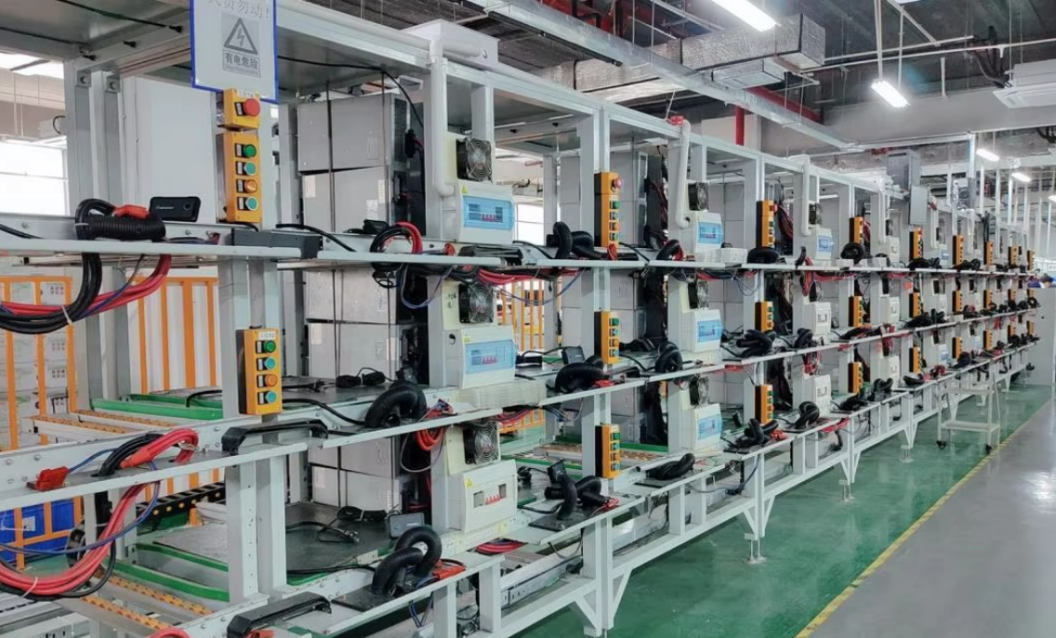

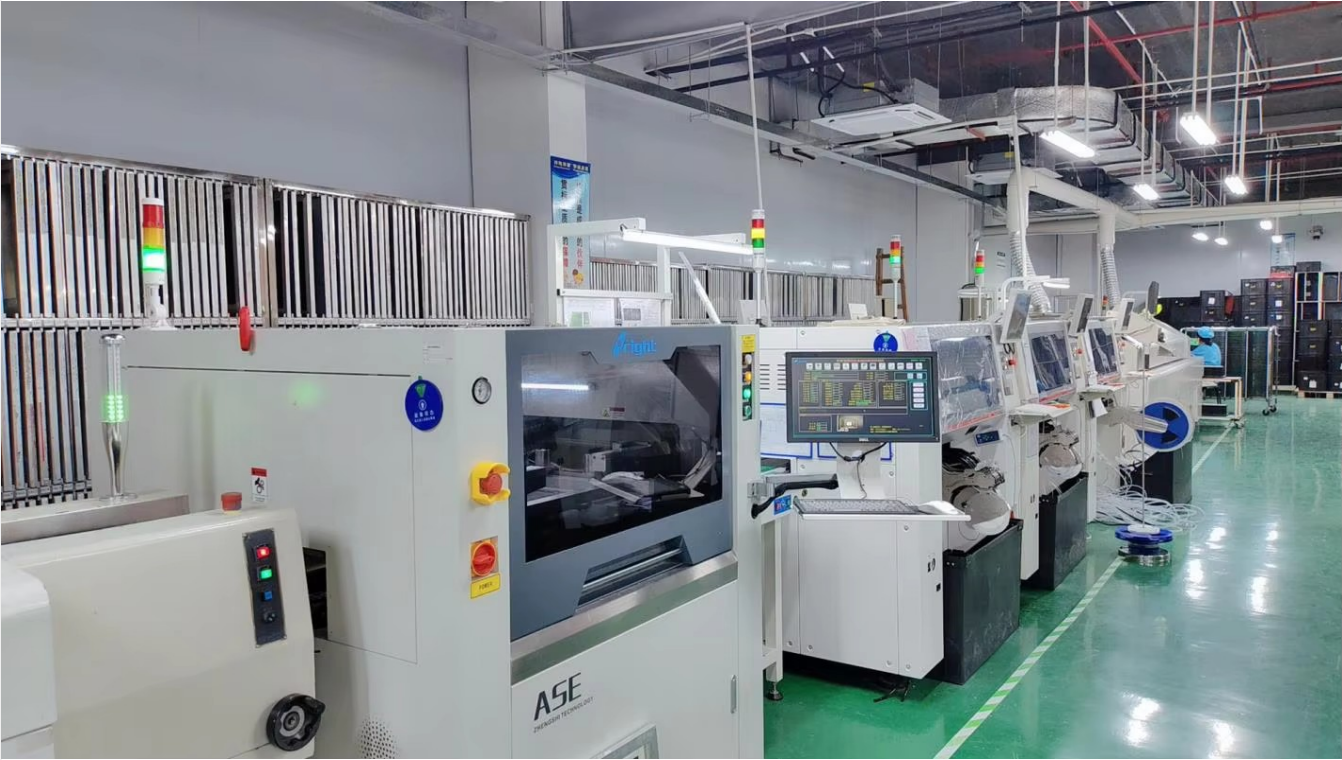

Modern Production Workshop and Advanced Production Equipment and Professional Technical Team
Ensure All Process of the Product From Design to Production Meets the Highest Standards in the Industry.
Supporting the Best Service, Offering the Cost Performance Items,Making the World Greener and Better.
