Product Specification:
Off Grid Solar Inverter(YWJ-NP-1.2KVA) Parameter
| MODEL | YWJ-NP-1.2KVA | YWJ-NP-1.6KVA |
| RATED Power | 1000W/1000VA | 1500W/1500VA |
| AC Input | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170~280VAC(For Persional Computers) | |
| 90~280VAC(For Home Appliance) | ||
| Frequency Range | 50Hz/60Hz(Auto sensing) | |
| AC Output | ||
| AC Voltage Regulation | 230VAC±5% | |
| Surge Power | 2000VA | 3000VA |
| Efficiency(Peak)PV toINV | 98% | |
| Efficiency(Peak)Battery to INV | 94% | |
| Transfer Time | 10ms(For Personal Computers), 20ms(For Home Appliances) | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 12VDC | 24VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC |
| Overcharge Protection | 16VDC | 32VDC |
| Maximum AC Charge Current | 40A | |
| Maximum PV Array Power | 550W | 1080W |
| MPPT Range@Operating Voltage | 20-150VDC | 30-150VDC |
| Maximum PV Array Open Circuit Voltage | 150VDC | |
| Maximum Solar Charging Current | 40A | |
| Maximum (AC+Solar)Charging Current | 80A | |
| PHYSICAL | ||
| Dimension,D*W*H(mm) | 286*240*91mm | |
| Cartoon Dimension,D*W*H(mm) | 335*295*145mm | |
| Net Weight(kgs) | 3 | 3.5 |
| Gross Weight(kgs) | 3.5 | 4 |

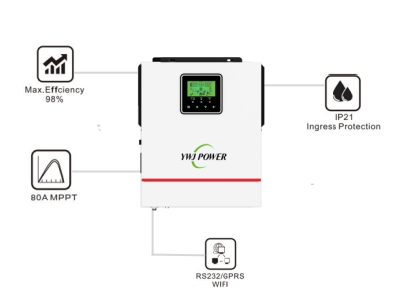

Off Grid Solar Inverter(YWJ-NP-1.2KVA) Advantages
YWJ Solar Inverter with Efficiency Work charger
•MPPT Charger 80A Max
Making Solar Inverter of Higher Work Efficiency and
Output Much Stable.
YWJ Solar Inverter of High-tech
•High Range PV Input
20V-150VDC，More Solar Power Available For Using.
Pure Sine Wave Inverter
YWJ Solar Inverter with 12 Month Warranty
• 20 Professional Technicians for After-sales Supporting
YWJ Inverter with 300 Workers and 30000 Square Workingshop
•Fast Delivery and Fully Testing Before All Shipments
Off Grid Solar Inverter,YWJ Power Factory
YWJ Power Factory Focuses on R&D and Manufacturing of Solar Inverters More Than 10 Years.
We Commit to Provide Customers with Hi-tech ,Efficient, Stable and Reliable Solar Inverter Solutions.
Modern Production Workshop and Advanced Production Equipment and Professional Technical Team
Ensure All Process of the Product From Design to Production Meets the Highest Standards in the Industry.
Supporting the Best Service, Offering the Cost Performance Items,Making the World Greener and Better.
