Hybrid(On/Off)Solar Inverter

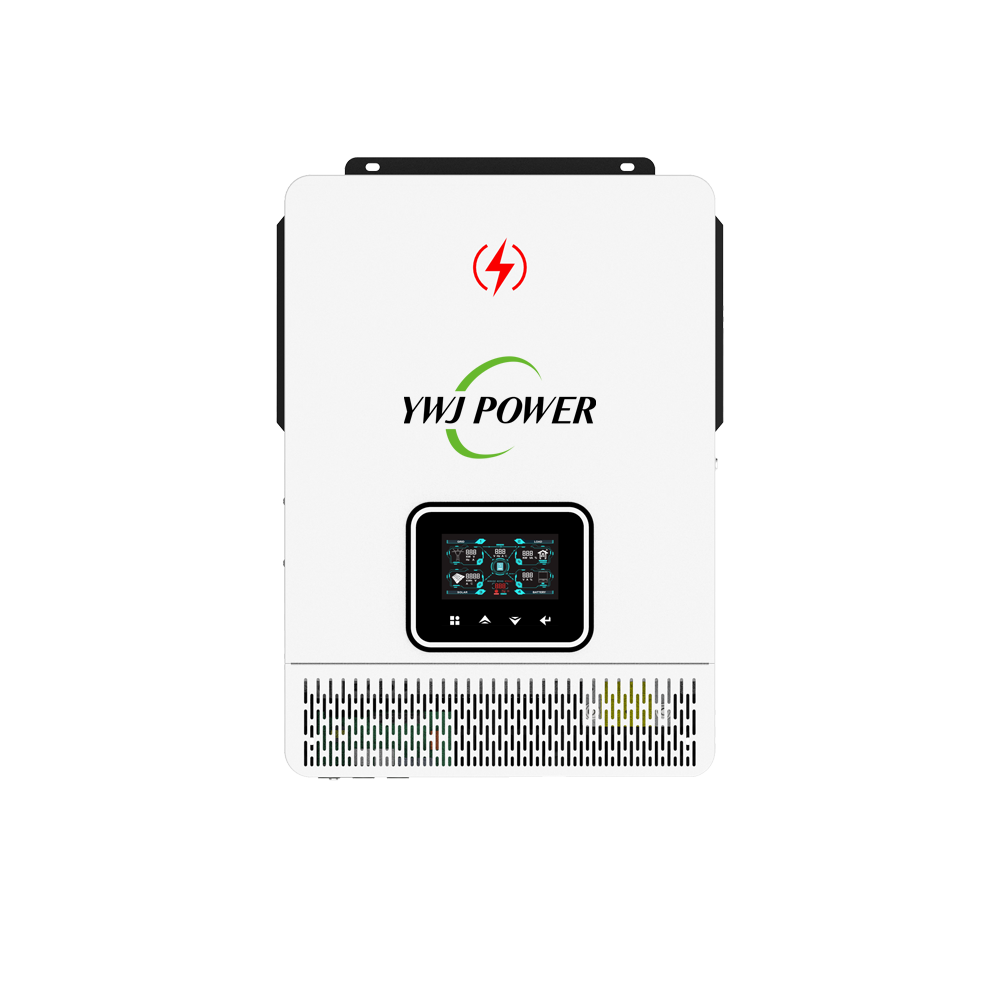

YWJ 6KW 48V Parallel Function Hybrid Solar Inverter 60-500VDC 120A PV Input Dual AC Output with BMS for Home System

One Year Warranty Physical Stock Ready to Ship.

Product Specification:
  • 1.Pure Sine Wave Solar Inverter
  • 2.Can running three phase output
  • 3.Parallel operation up to 9 units
  • 4.Max 120A MPPT Solar Charger
  • 5.Max 500VDC PV Input
  • 6.Dual PV Input
  • 7. Two Loads Output,Support BMS
  • 8.Efficiency work with or without battery
INQUIRY NOW
Product Details





ON/Off Grid Hybrid Solar Inverter(YWJ-NP-6KW-Parallel) Parameter





Model YWJ-NP-3.6KW-Parallel YWJ-NP-6KW-Parallel
Phase 1-Phase
Maximum PV Input Power 6200W 4500W+4500W
Rated Output Power 3600W/3600VA 6000W/6000VA
Maximum Solar Charging Current 120A
GRID-TIE OPERATION
PV Input(DC)
Nominal DC Voltage/Maximum DC Voltage 360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage 90VDC/120VDC
MPPT Voltage Range 60~500VDC
Number of MPPT/Max Input Current 1/22A 2/18A
GRID OUTPUT(AC)
GRID OUTPUT(AC) 220/230/240VAC
Output Valtage Range 195.5~253VAC
Norminal Output Current 15.2A 26.1A
Power Factor >0.99
Feed-in Grid Frequency Range 49~51Hz
EFFICIENCY
Max Conversion Efficiency(Solar to AC) 98%
TWO LOAD OUTPUT POWER(V2.0)
Full Load 3600W 6000W
Maximum Main Load 3600W 6000W
Second Load Range 720~2520W 1200W~4200W
Main Load Cut Off Voltage 26VDC 52VDC
Main Load Return Voltage 27VDC 54VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage 130-140VAC/180VAC
Acceptable Input Voltage Range 90-280VAC or 170-280VAC
Maximum AC Input Current 21.1A 35.3A
Nominal operating frequency 47~55+0.3HZ/57~65+0.3HZ
Surge power 7200W 12000W
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
Start-up Voltage/nitial Feeding Voltage 90VDC/120VDC
MPPT Voltage Range 60~450VDC
Number of MPPT Trakers/Maximum Input current 1/22A 2/18A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 195.5-253VAC
Nominal Output Current 15.2A 26.1A
AC INPUT
AC Start-up Voltage/Auto Restart Voltage 120-140VAC/180VAC
Acceptable Input Voltage Range 90-280VAC/170-280VAC
Maximum AC input Current 21.1A 35.3A
Battery Mode Output(AC)
Nominal Output Voltage 220/230/240VAC
Efficiency (DC to AC ) 94%
PHYSICAL
Dimension,D*W*H(mm) 423*334*110mm
Net Weight(Kgs) 10 11
INTERFACE
Parallel Function
Communication Port RS232/WIFI/RS485
ENVIRONMENT
Operating Temperature -10-50℃





On/Off Grid Solar Inverter(YWJ-NP-6KW-Parallel) Advantages



Hybrid Inverter



YWJ Solar Inverter More Option for Output

•Dual Output
User Can Connect Some Important Loads to The Secondary Output.
While The Battery Voltage is Low,the Inverter Shall Disconnect the Main Load and Ensure the Output of the Secondary Load.





6000W Hybrid Solar Inverter



YWJ Solar Inverter of High-tech

•High Range PV Input

90V-500VDC,More Solar Power Available For Using.

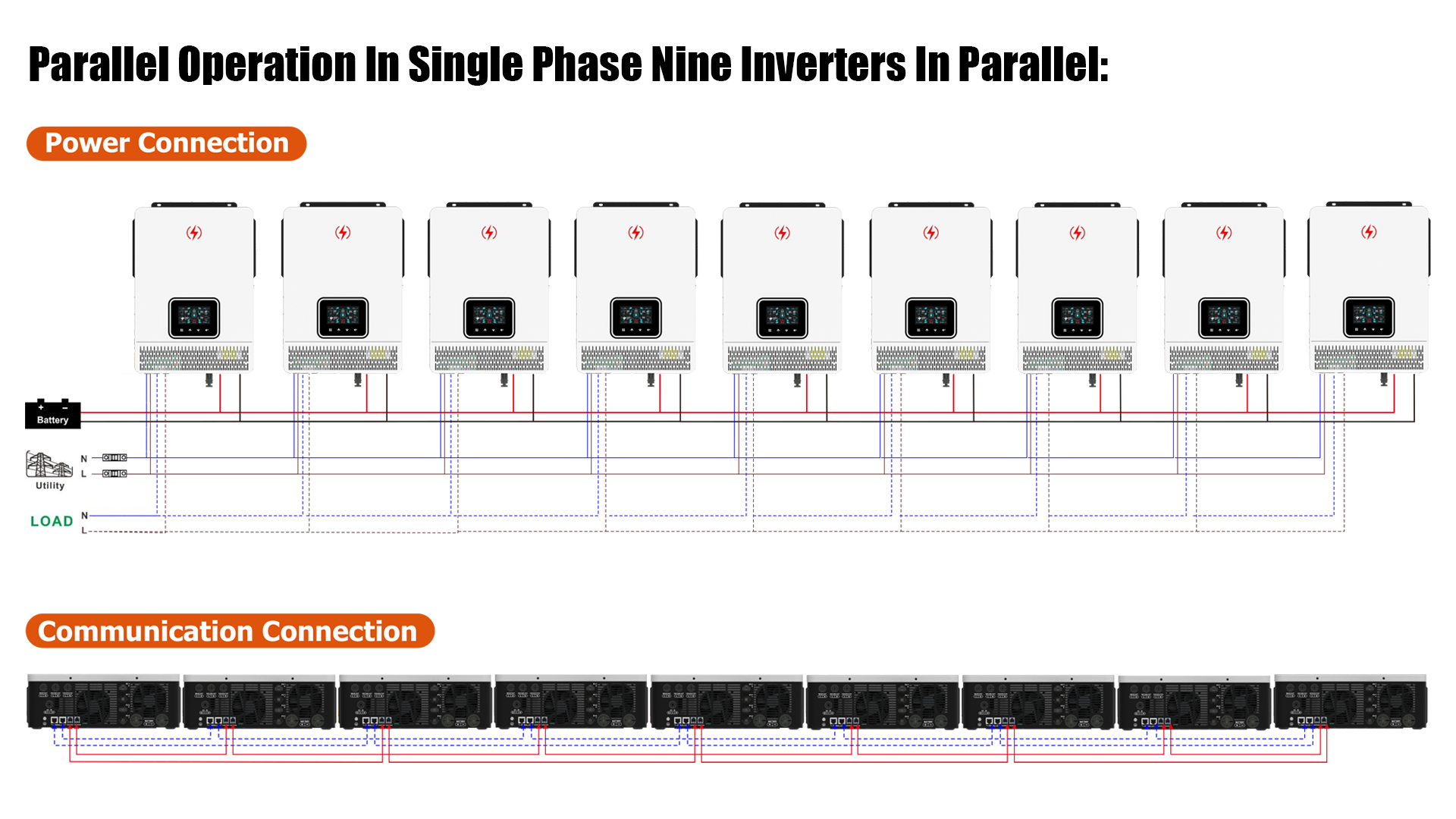

Parallel Function
Parallel operation up to 9 units

Dual PV input (only 6KW)

Hybrid Solar Inverter Wholesaler

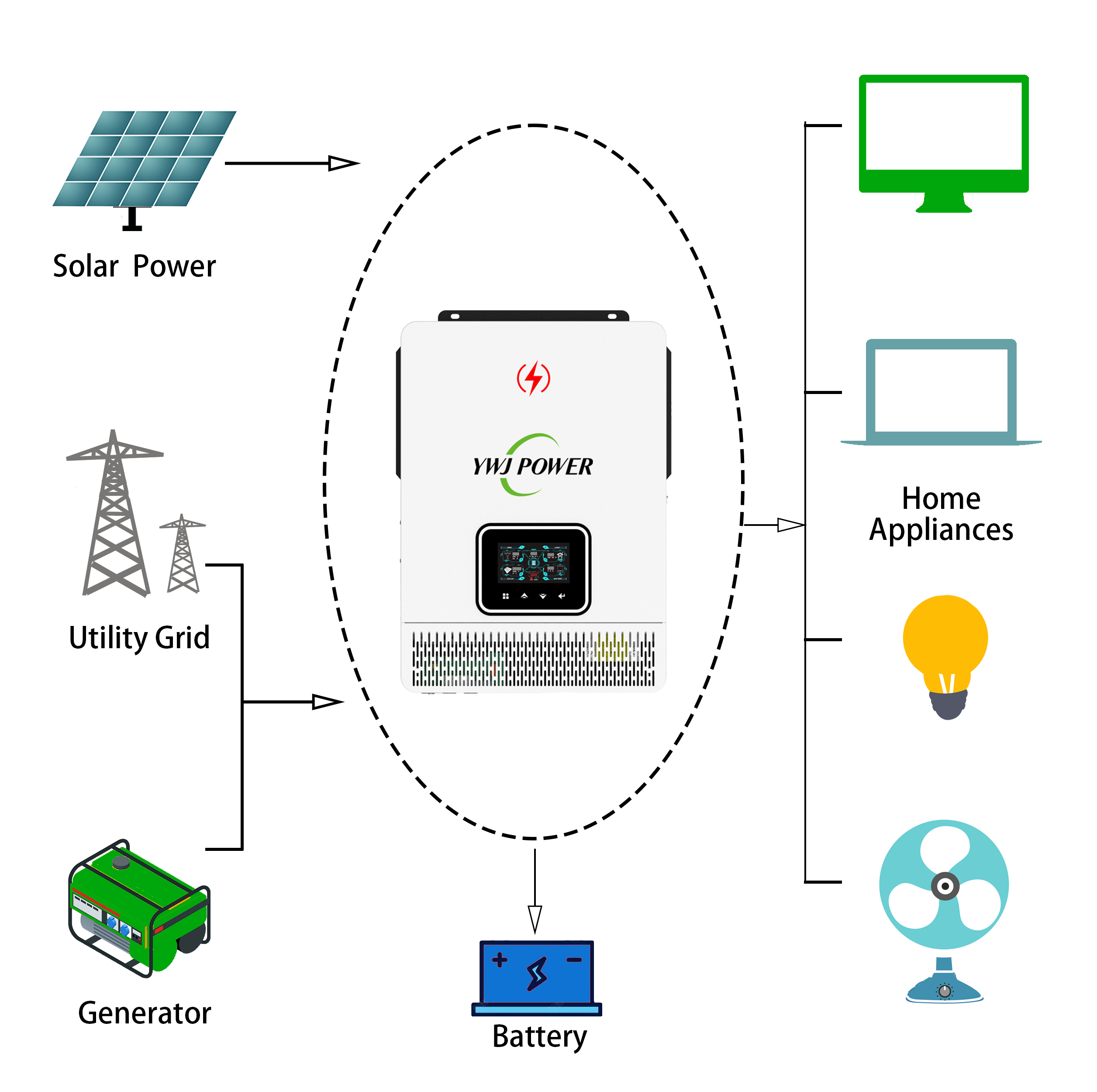

YWJ Solar Inverter Efficiency Work With or Without Battery

• Work Without Battery
It Can Work Without Battery ,But PV Need to Be 150V or Above to Ensure Solar Inverter Start Smoothly.







MPPT Solar Inverter



YWJ Inverter Smart Monitoring Performance

•WIFI Module Available

• BMS Function Built-in If Battery Have BMS ,The Inverter will Communicate and Adjust
 Parameters Automatically, Making Battery in a Good Condition and Status.

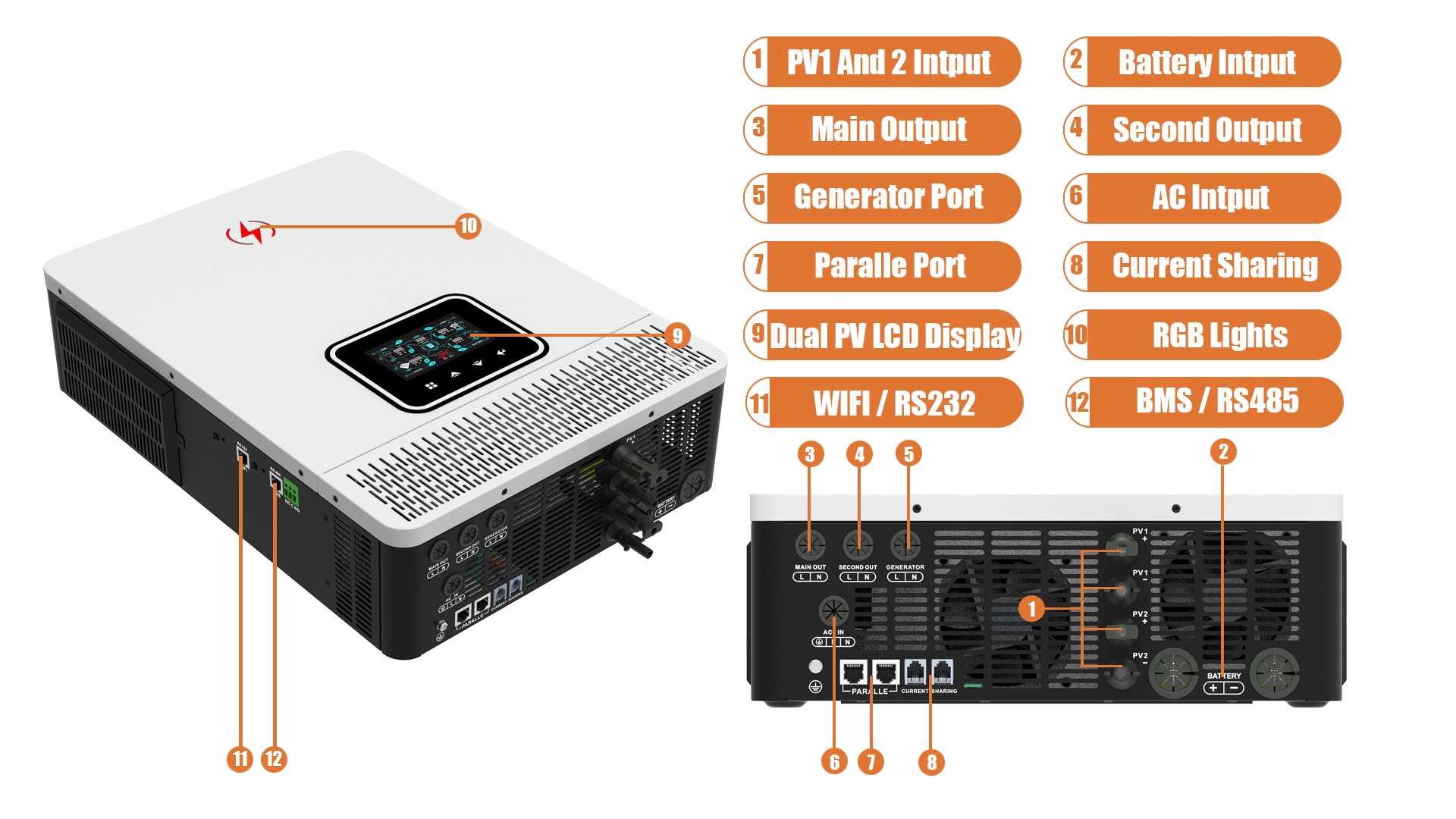

Dual communication ports for Battery communication and Wifi communication



On/Off Grid Hybrid Solar Inverter,YWJ Power Factory



YWJ Power Factory Focuses on R&D and Manufacturing of Solar Inverters More Than 10 Years.
We Commit to Provide Customers with Hi-tech ,Efficient, Stable and Reliable Solar Inverter Solutions.
Modern Production Workshop and Advanced Production Equipment and Professional Technical Team
Ensure All Process of the Product From Design to Production Meets the Highest Standards in the Industry.
Supporting the Best Service, Offering the Cost Performance Items,Making the World Greener and Better.
