Hybrid(On/Off)Solar Inverter

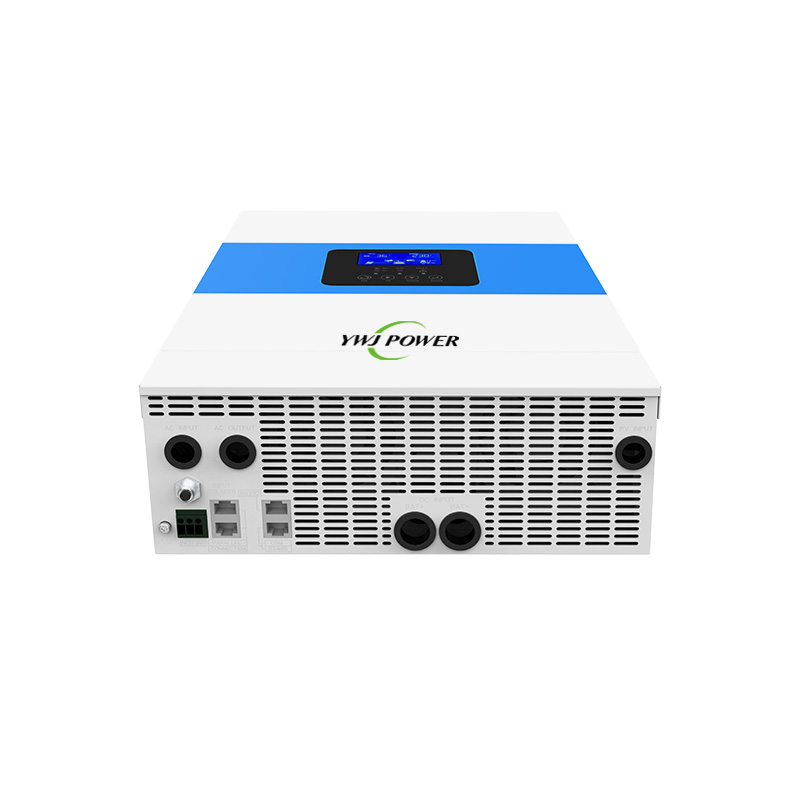

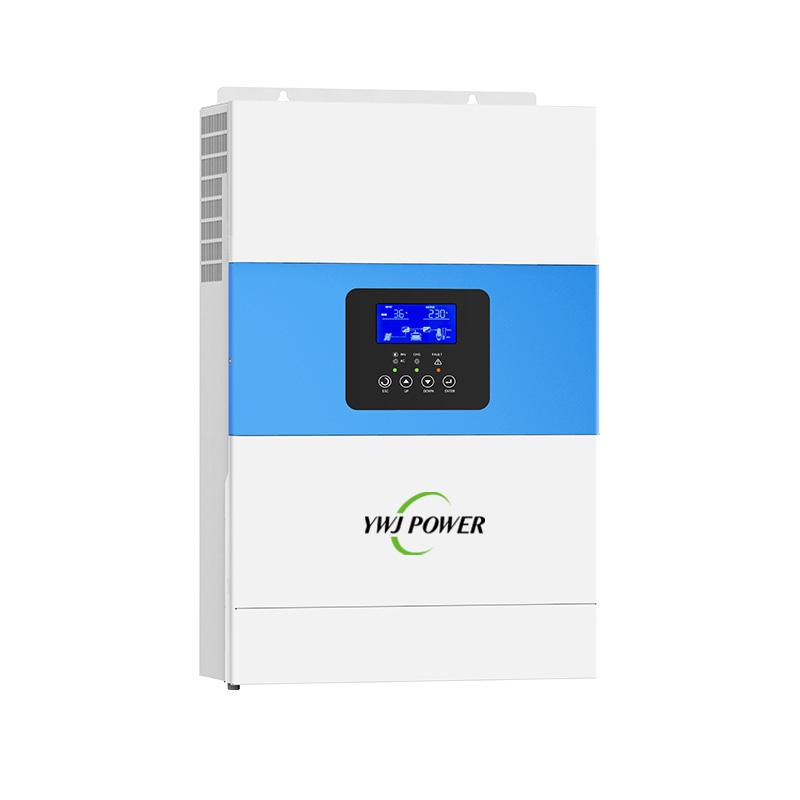

YWJ 3.5KW Hybrid Solar 24V Inverter MPPT Controller 450VDC 100A Pure Sine Wave String Inverter Home Use WiFi Communication

One Year Warranty Physical Stock Ready to Ship.

Product Specification:
  • 1.Pure Sine Wave Solar Inverter
  • 2.Output powerfactor1.0
  • 3.Max 100A MPPT Solar Charger
  • 4.Parallel Communication Port
  • 5.Dual Output
  • 6.Inverter can run without battery
  • 7.One-key restoration to factory Settings
INQUIRY NOW
Product Details





ON/Off Grid Hybrid Solar Inverter(YWJ-SC-3.5KW) Parameter





Model YWJ-SC-3.5KW YWJ-SC-5.5KW-Parallel
Phase 1-Phase
Maximum PV Input Power 3500W 5500W
Rated Output Power 3500W/3500VA 5500W/5500VA
Maximum Solar Charging Current 100A
GRID-TIE OPERATION
PV Input(DC)
Nominal DC Voltage/Maximum DC Voltage 360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage 90VDC/120VDC
MPPT Voltage Range 120~450VDC
Number of MPPT/Max Input Current 1/23A
GRID OUTPUT(AC)
Norminal Output Voltage 220/230/240VAC
Output Valtage Range 195.5~253VAC
Norminal Output Current 15.7A 27.0A
Power Factor >0.99
Feed-in Grid Frequency Range 49~51Hz
OFF-GRID OPERATION
AC Input
AC Start-up Voltage/Auto Restart Voltage 120-140VAC/180VAC
Acceptable Input Voltage Range 90-280VAC or 170-280VAC
Maximum AC Input Current 60A 60A
Nominal operating frequency 50/60Hz
Surge power 7000VA 11000VA
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure sine wave
Efficiency(DC to AC) 94%
BATTERY&CHARGER
Nominal DC Voltage 24VDC 48VDC
Maximum Solar Charging Current 100A
Maximum AC Charging Current 60A
PHYSICAL

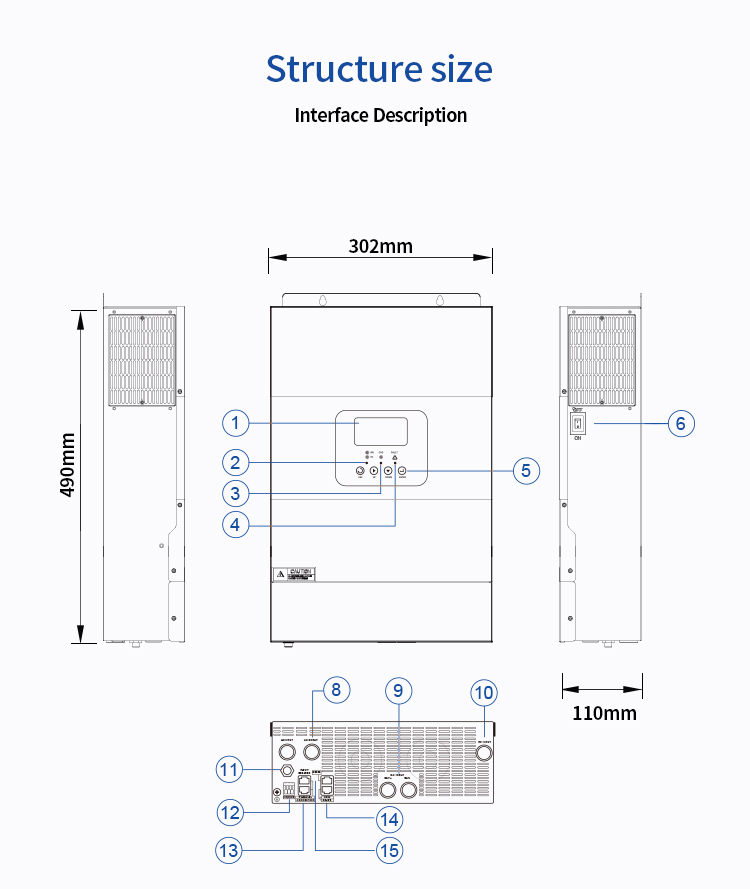

Dimension,D*W*H(mm) 302*490*110
Net Weight(Kgs) 8.5 9.7
INTERFACE

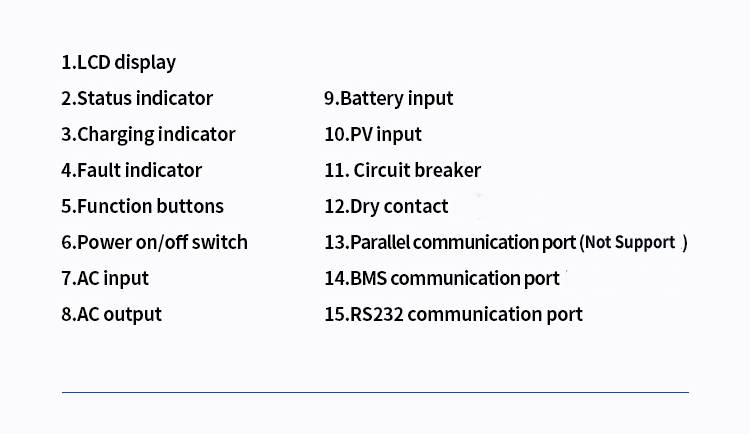

Communication Port RS23/RS485CAN/Dry contact
ENVIRONMENT
Operating Temperature -10~50℃





On/Off Grid Solar Inverter(YWJ-NP-6KW-Parallel) Advantages



Hybrid Solar Inverter



YWJ Solar Inverter More Option for Output

•Dual Output
User Can Connect Some Important Loads to The Secondary Output.
While The Battery Voltage is Low,the Inverter Shall Disconnect the Main Load and Ensure the Output of the Secondary Load.





3500W Hybrid Solar Inverter



YWJ Solar Inverter of High-tech

•High Range PV Input

120V-450VDC,More Solar Power Available For Using.



Hybrid Solar Inverter Wholesaler

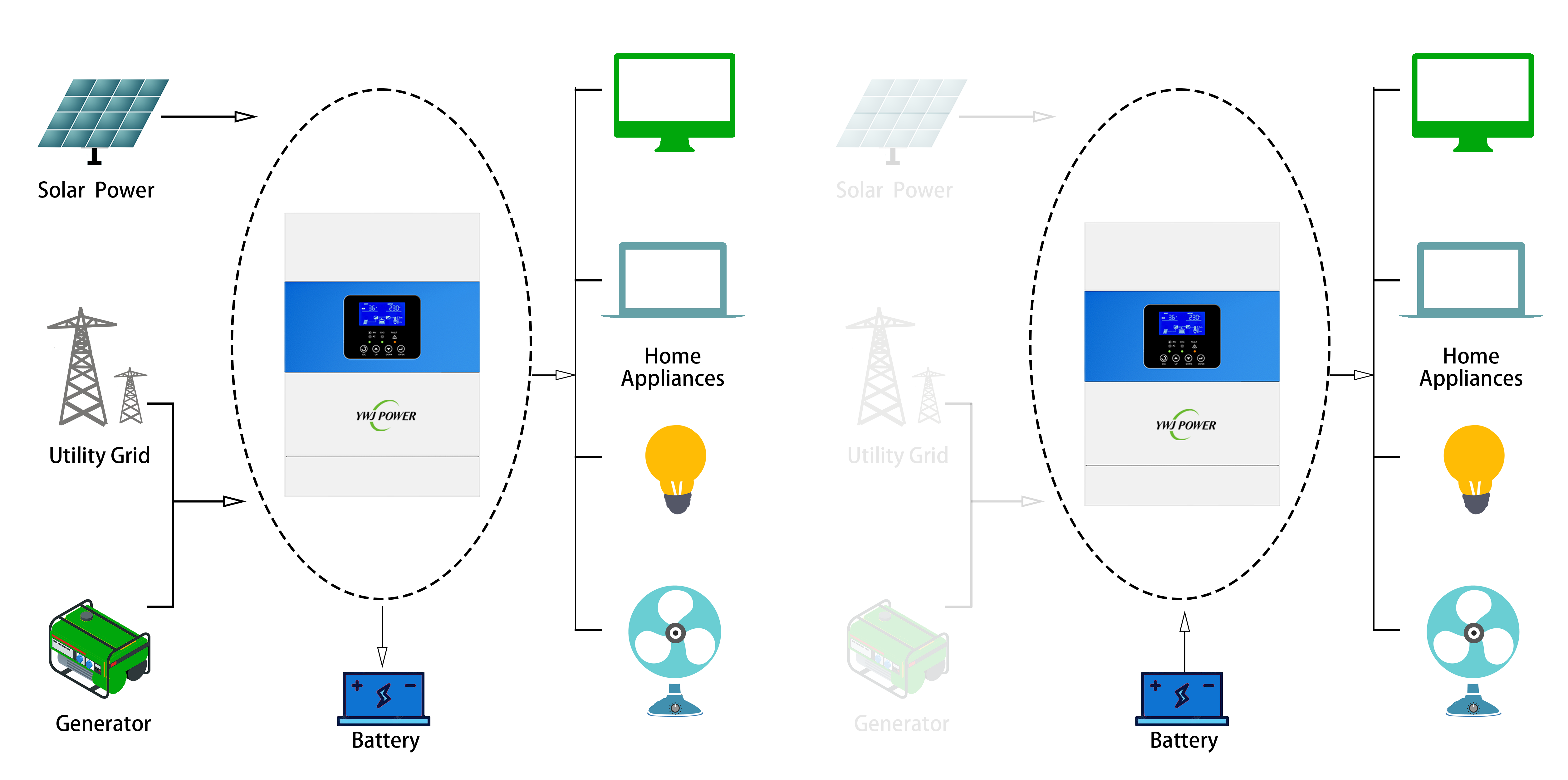

YWJ Solar Inverter Efficiency Work With or Without Battery

• Work Without Battery
It Can Work Without Battery ,But PV Need to Be 150V or Above to Ensure Solar Inverter Start Smoothly.







MPPT Solar Inverter



YWJ Inverter Smart Monitoring Performance

•WIFI Module Available

• BMS Function Built-in If Battery Have BMS ,The Inverter will Communicate and Adjust
 Parameters Automatically, Making Battery in a Good Condition and Status.

Dual communication ports for Battery communication and Wifi communication



On/Off Grid Hybrid Solar Inverter,YWJ Power Factory



YWJ Power Factory Focuses on R&D and Manufacturing of Solar Inverters More Than 10 Years.
We Commit to Provide Customers with Hi-tech ,Efficient, Stable and Reliable Solar Inverter Solutions.
Modern Production Workshop and Advanced Production Equipment and Professional Technical Team
Ensure All Process of the Product From Design to Production Meets the Highest Standards in the Industry.
Supporting the Best Service, Offering the Cost Performance Items,Making the World Greener and Better.
