Energy Storage System

All In One Solar Inverter Energy Systems 4.2KW 6.2KW 24V 48V Hybrid Inverter Pure Sine Wave Inverter

One Year Warranty Physical Stock Ready to Ship.

Product Specification:
  • 1.Pure Sine Wave Solar Inverter
  • 2.Max 120A MPPT Solar Charger
  • 3.High PV input voltage range(60~500VDC)
  • 4.Two Loads Output
  • 5. WIFI&GPRS available for lOS and Android
  • 6.Smart battery charge design to optimize battery life
INQUIRY NOW
Product Details





All In One Hybrid Inverter Energy Systems(ESS-4.2KW/6.2KW PLUS) Parameter





Model YWJ-NP-ESS-4.2KW PLUS YWJ-NP-ESS-6.2KW PLUS
Phase 1-Phase
Maximum PV Input Power 6200W 6500W
Rated Output Power 4200W/4200VA 6200W/6200VA
Maximum Solar Charging Current 120A
GRID-TIE OPERATION
PV Input(DC)
Nominal DC Voltage/Maximum DC Voltage 360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage 60VDC/90VDC
MPPT Voltage Range 60~450VDC
Number of MPPT/Max Input Current 1/18A 1/22A
GRID OUTPUT(AC)
Norminal Output Voltage 220/230/240VAC
Output Valtage Range 195.5~253VAC
Norminal Output Current 15.7A 27.0A
Power Factor >0.99
Feed-in Grid Frequency Range 49~51Hz
EFFICIENCY
Max Conversion Efficiency(Solar to AC) 98%
TWO LOAD OUTPUT POWER(V2.0)
Full Load 4200W 6200W
Maximum Main Load 4200W 6200W
Max Second Load(battery mode) 1200W 2067W
Main Load Cut Off Voltage 26VDC 52VDC
Main Load Return Voltage 27VDC 54VDC
OFF-GRID OPERATION
AC Input
AC Start-up Voltage/Auto Restart Voltage 120-140VAC/180VAC
Acceptable Input Voltage Range 90-280VAC or 170-280VAC
Maximum AC Input Current 30A 40A
Nominal operating frequency 49-51±Hz
Surge power 7200W 12400W
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure sine wave
Efficiency(DC to AC) 94%
BATTERY&CHARGER
Nominal DC Voltage 24VDC 48VDC
Maximum Solar Charging Current 120A
Maximum AC Charging Current 100A
Maximum Charging Current 120A
PHYSICAL
Dimension,D*W*H(mm) 420*350*110mm
Carton Dimension,D*W*H(mm) 500*410*190mm
Net Weight(Kgs) 18.5 19.5
Gross Weight(Kgs) 20.5 21.5
INTERFACE
Communication Port RS232/WIFI/GPRS/LITHIUM BATTERY
ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non ~condensing)
Operating Temperature -10~50℃
STANDARD
Compliance Safety CE



BATTERY MODEL 25.6V 100AH 25.6V 200AH 48V 100AH 48V 200AH
Normal charging voltage 29.2V 29.2V 54.75V 54.75V
Maximum charging current 100A 100A 100A 100A
Discharge termination voltage 21.6V 21.6V 40.5V 40.5V
Recommended discharge
termination voltage
22.4V 22.4V 42V 42V
Maximum discharge current 100A 100A 100A 100A
Single cell charging
overvoltage protection
3.8V 3.8V 3.8V 3.8V
Overvoltage protection for
the whole battery
29.2V 29.2V 54.75V 54.75V
Low voltage protection for
single cell discharge
2.7V 2.7V 2.7V 2.7V
Low voltage protection for
whole group discharge
21.6V 21.6V 40.5V 40.5V
Chargeovercurrent protection 102~112A 102~112A 102~112A 102~112A
Discharge overcurrent protection 102~122A 102~122A 102~122A 102~122A
BMS Features ●High accuracy cell level voltage,current measuring
●Over-charge,over-discharge protection
●Short-circuit protection
●Self-learning intelligent SOC calculation
●Cell level active equalization
●Multiple communication type
●Parallel connect function
Working temperature -15℃~+55℃
Storage temperature -20℃~+50℃
Single Battery Module Dimensions(mm) 541*480*190 541*480*190 541*480*190 541*480*190
Single Battery Module Weight(KG) 27KG 54KG 54KG 54KG

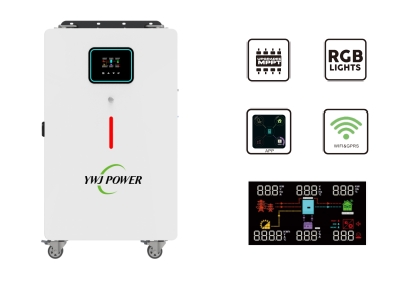

All In One Hybrid Inverter Energy Storage Systems(ESS-4.2KW/6.2KW PLUS) Advantages

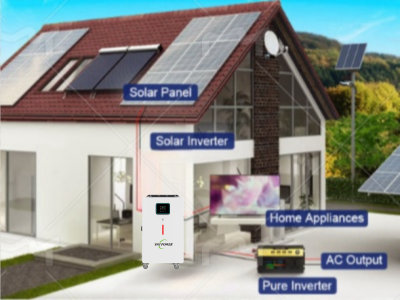

Integrated design Energy Systems



YWJ Solar Inverter More Easy to Connect

•MPPT Solar Charger

Built-in 120A MPPT Charger

•Wifi & GPRS available

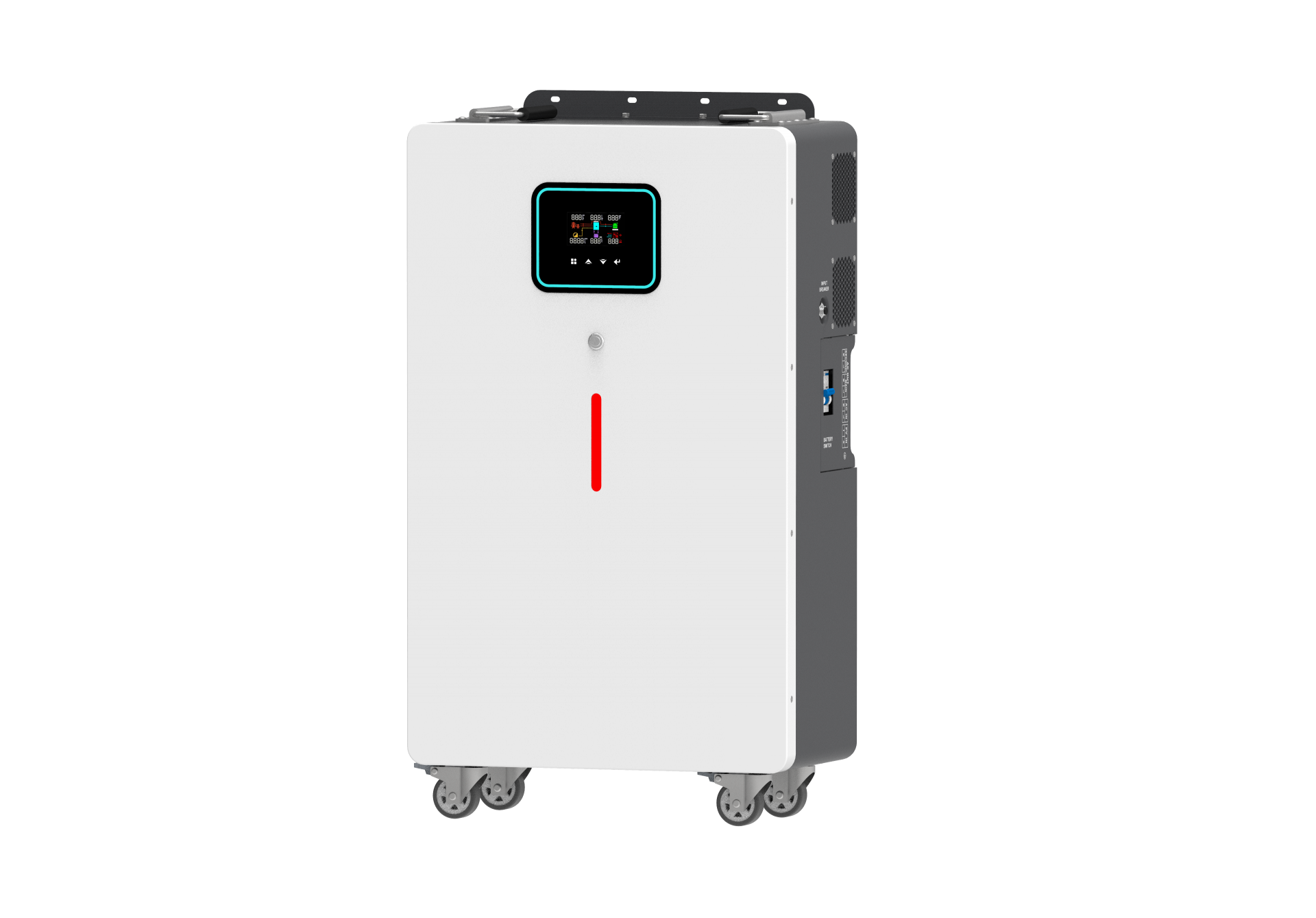

All In One Inverter



YWJ Solar Inverter of High-tech

•High Range PV Input

60V-500VDC,More Solar Power Available For Using.

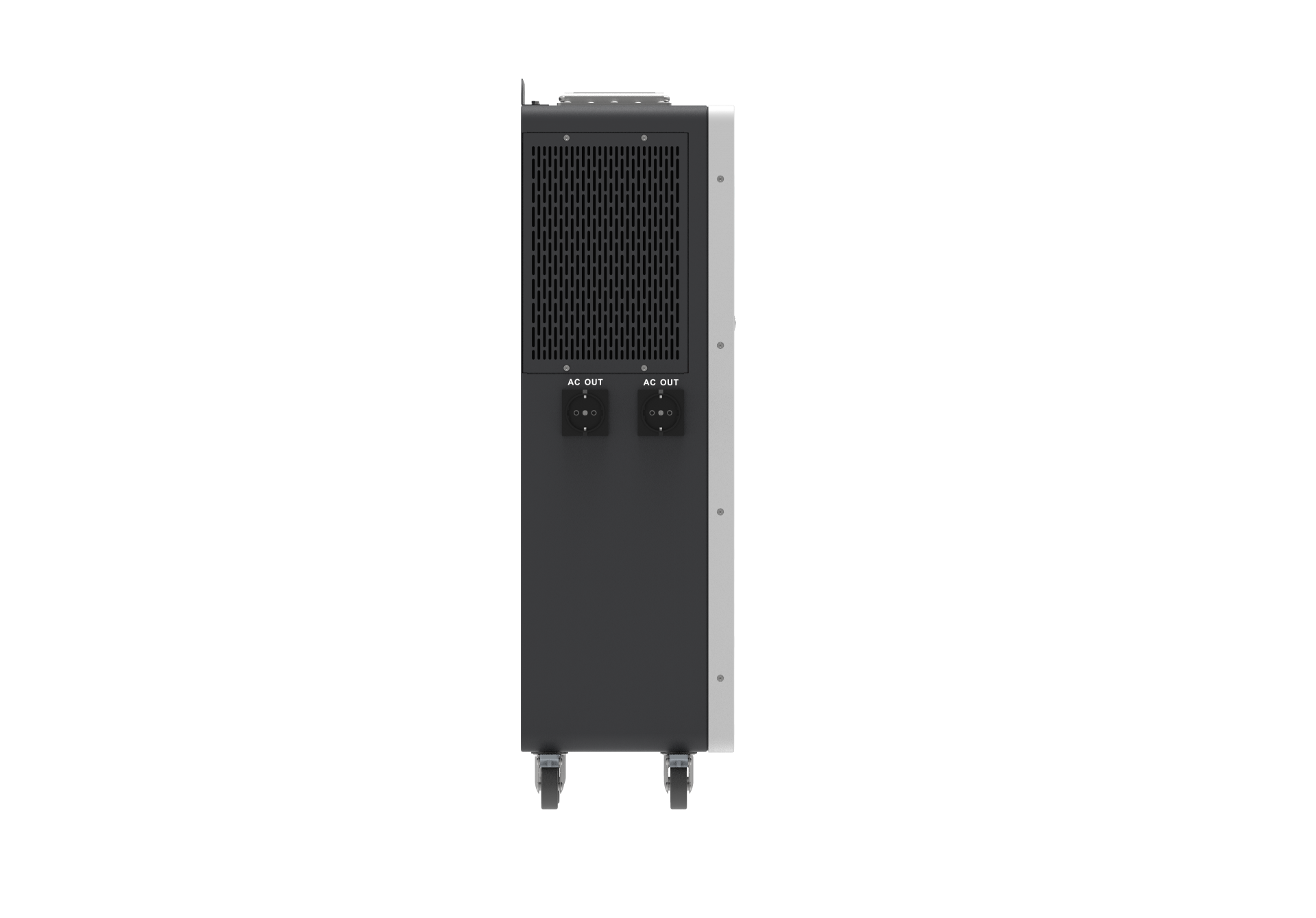

•Dual Output

Hybrid Solar inverter wholesaler



YWJ Solar Inverter With 12 Months Warranty

•20 Professional Technicians for After-sale Supporting

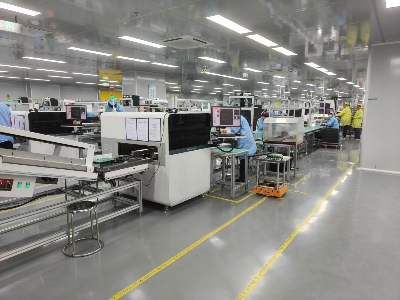

Solar Inverter factory



YWJ Solar Inverter With 300 Workers and 30000

Square Workingshop

•Fast Delivery And Fully Testing before ALL Shipments







On/Off Grid Hybrid Solar Inverter,YWJ Power Factory



YWJ Power Factory Focuses on R&D and Manufacturing of Solar Inverters More Than 10 Years.
We Commit to Provide Customers with Hi-tech ,Efficient, Stable and Reliable Solar Inverter Solutions.

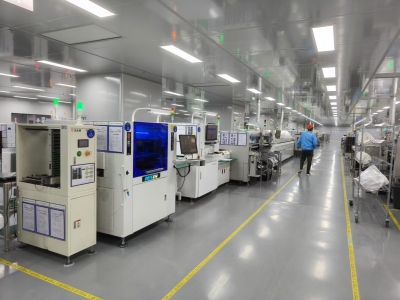

Modern Production Workshop and Advanced Production Equipment and Professional Technical Team
Ensure All Process of the Product From Design to Production Meets the Highest Standards in the Industry.
Supporting the Best Service, Offering the Cost Performance Items,Making the World Greener and Better.
